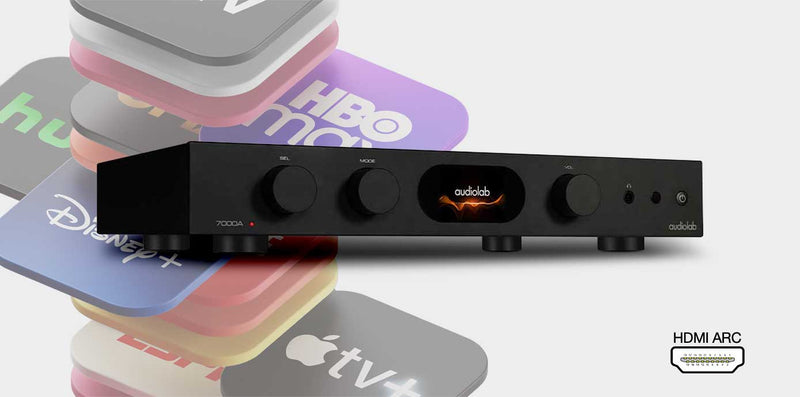

HDM-WHY?
SUPPORTING THE LOCALS
EXQUISITE DIGITAL PERFORMANCE
TURN ON TUNE OUT

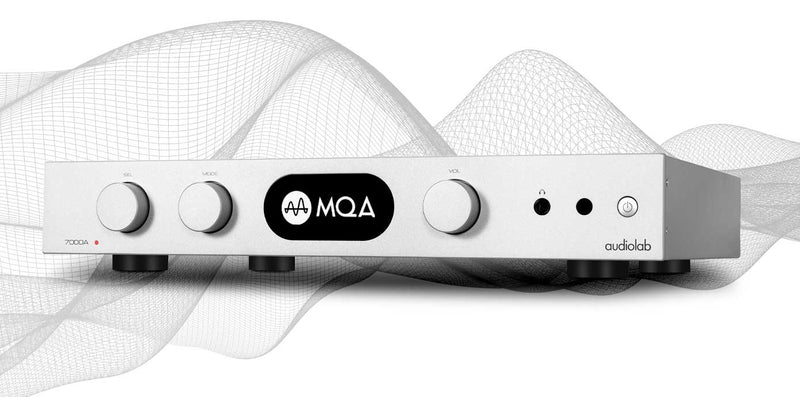

MQA ALL THE WAY

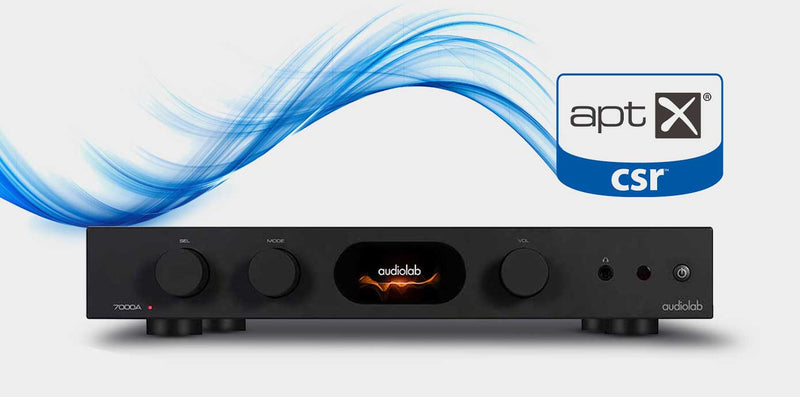

ENJOY THE APTX-FACTOR
SATISFYING EVERY OBSESSION
prefer the in-store experience?
Audio Visual Revolution Pty Ltd is supported by an incredible network of Australian audio specialists retailing our product. For all in-store demonstrations or to support your local retailer, click below.

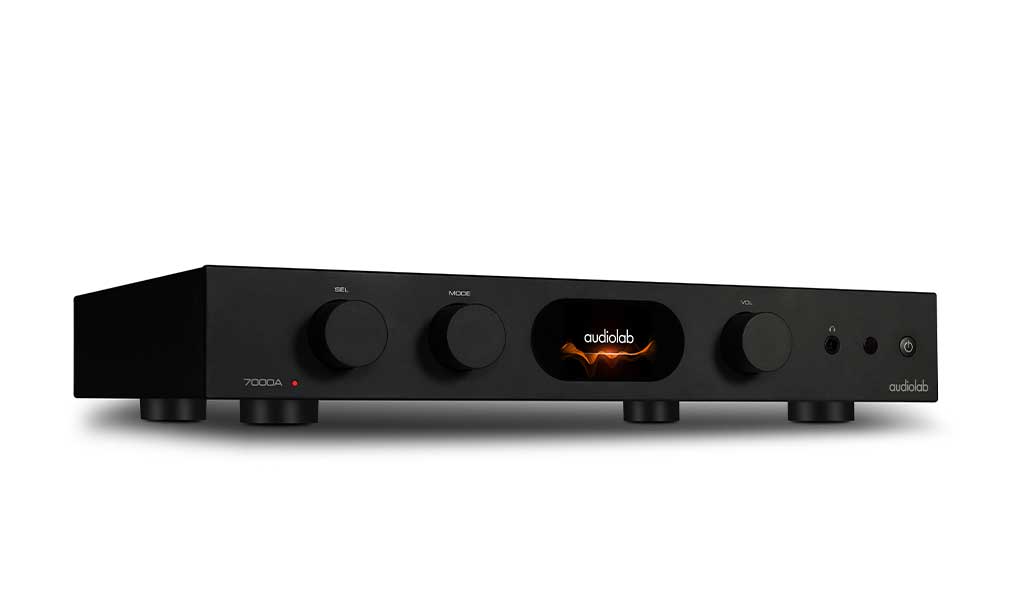

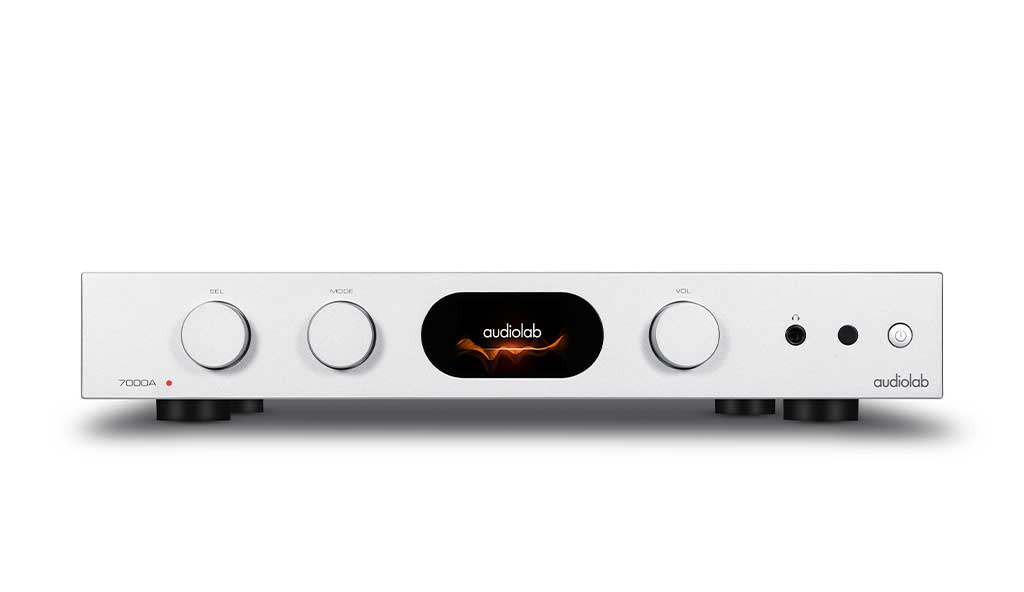

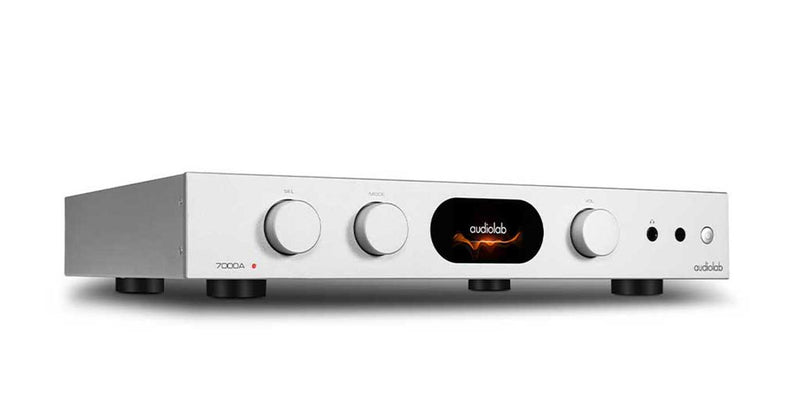

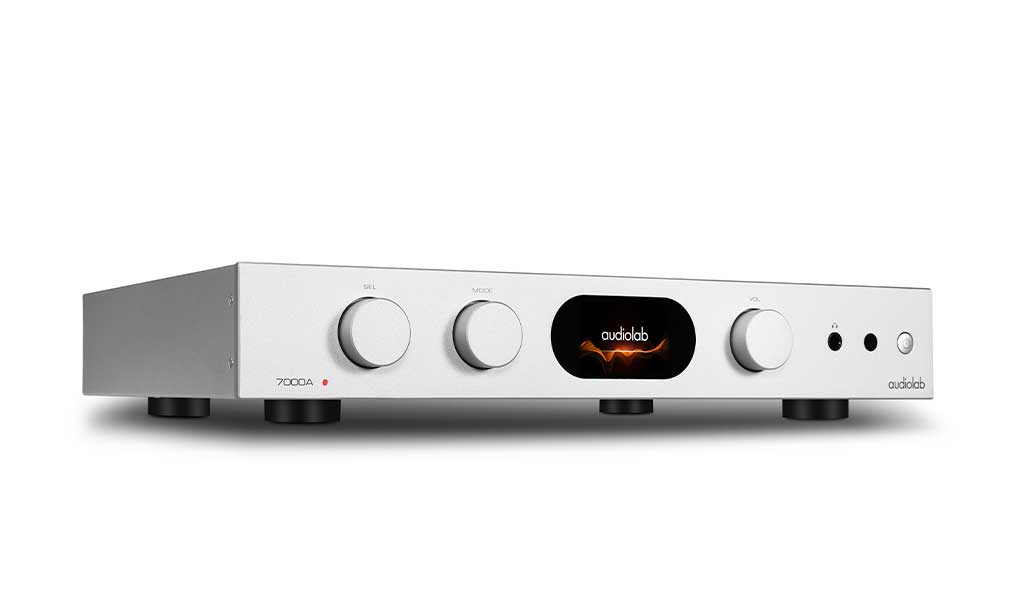

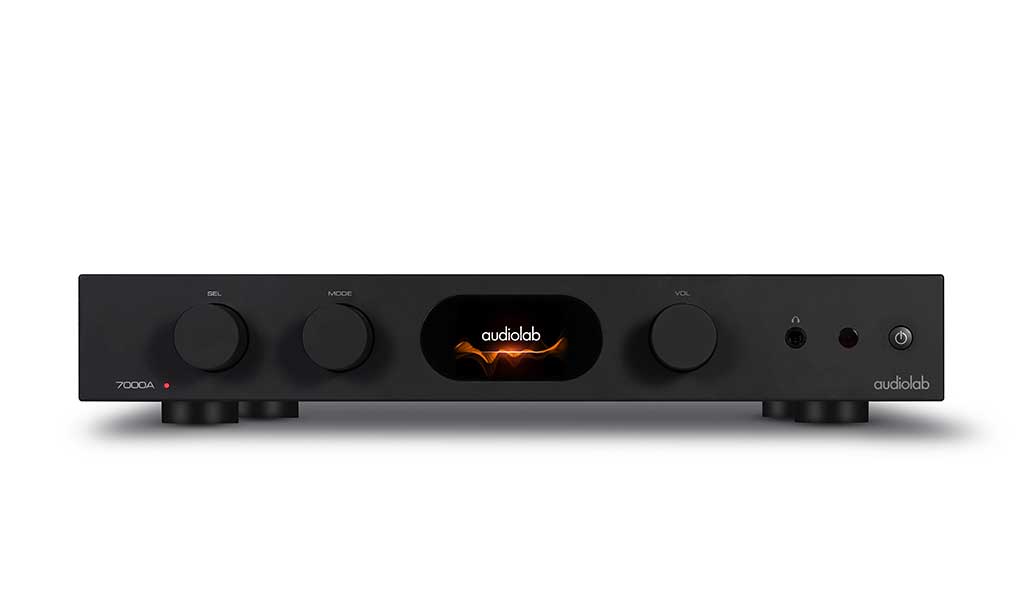

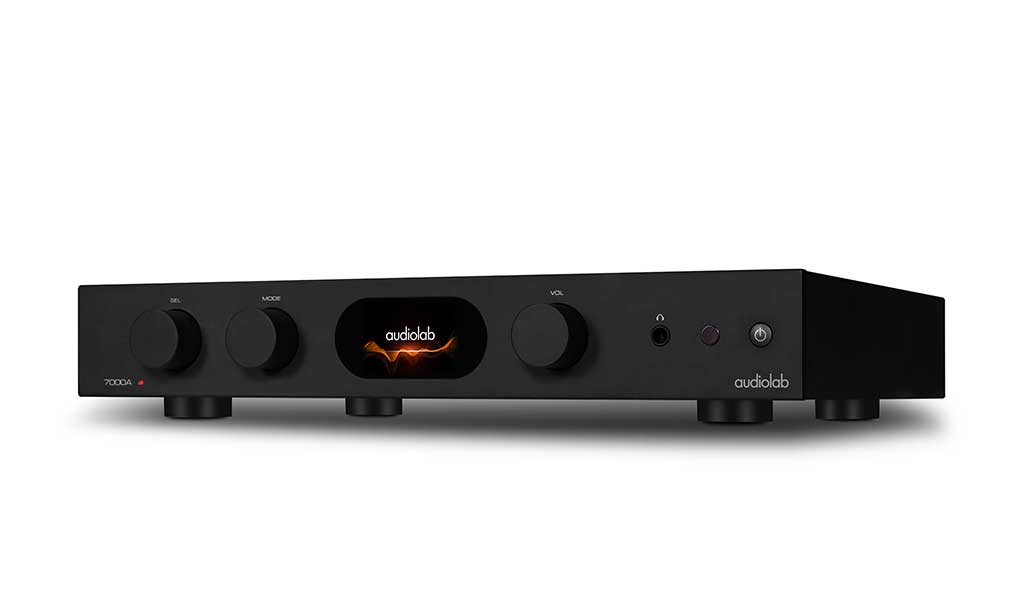

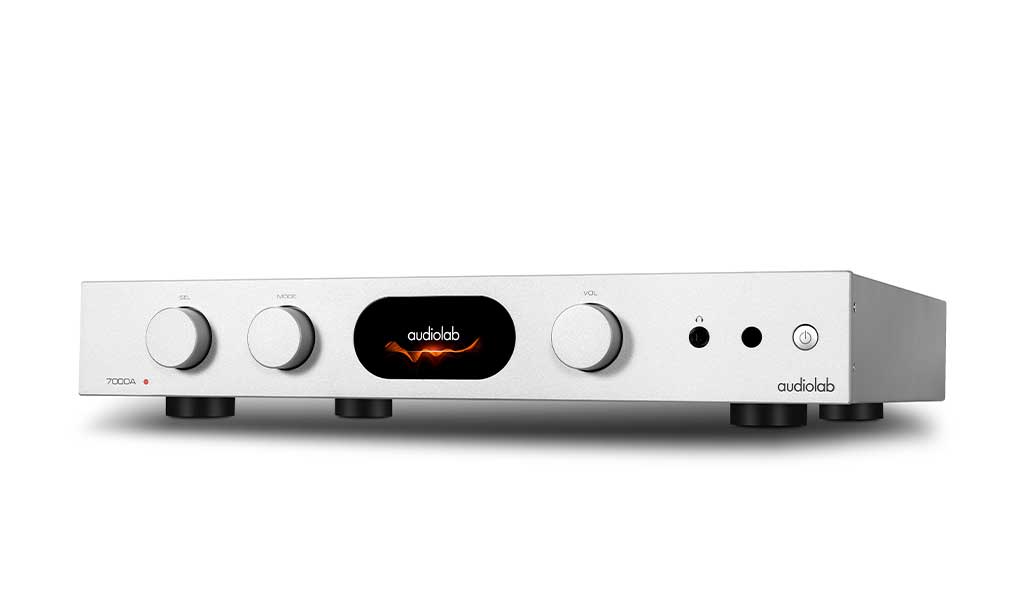

Audiolab 7000A Integrated Amplifier
Technical specifications
Power Amplifier Section | |
Rated Power Output | 2 x 70W (8ohms) 2 x 110W (4ohms) Class AB |
Frequency Response | 20Hz-20kHz (+/-0.3dB) |
Signal-to-Noise Ratio | 110dB (A-weighted) |
Total Harmonic Distortion | <0.003% (1kHz @40W / 8ohms) |
Preamplifier Section | |
Gain | +6dB (line), +55dB (Phono MM) |
Input Sensitivity | 820mV (Line, Vol. = 0dB); 3.1mV (Phono MM Vol. = 0dB) |
Input Impedance | 10K (Line); 47K // 100pF (Phono MM) |
Frequency Response | 20Hz-20kHz (+/-0.1dB) |
Signal-to-Noise Ratio | > 110dB (Line A-weighted) > 76dB (Phono MM, A-weighted) |
Total Harmonic Distortion | <0.005% (1kHz @ 2V, Volume = 0dB) |

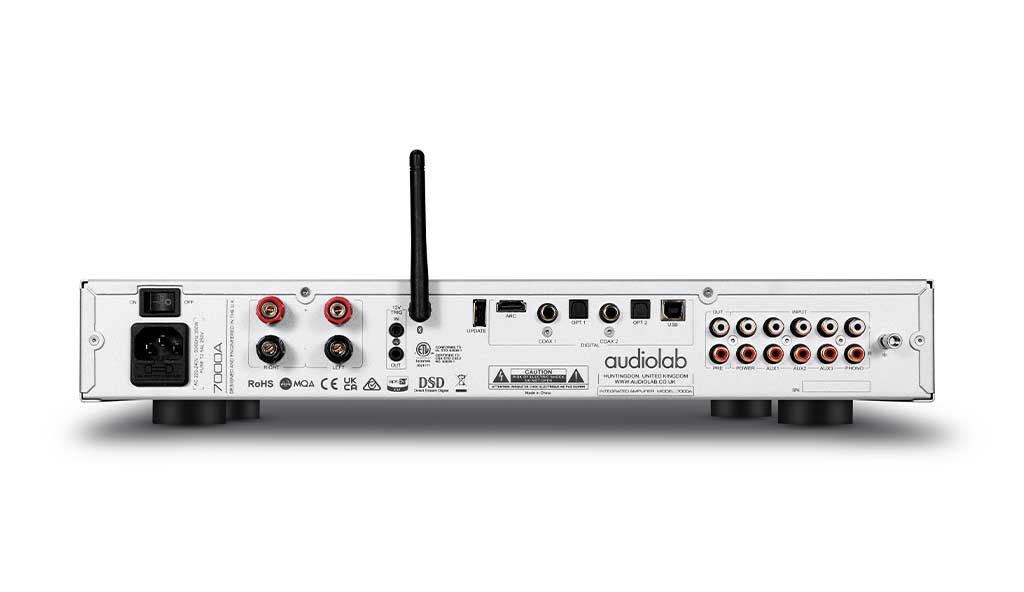

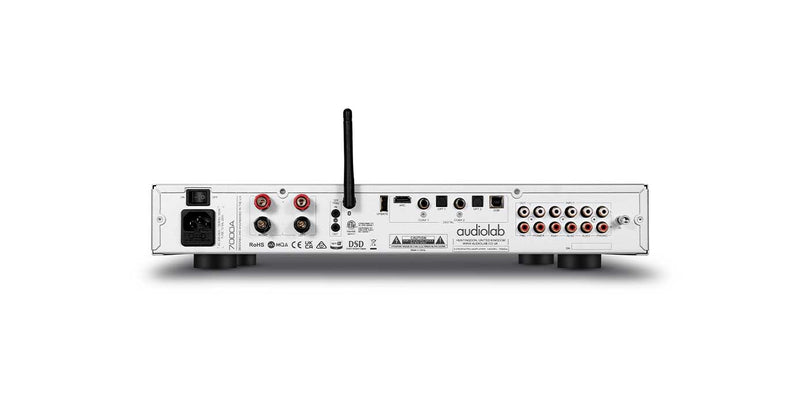

Input/Output | |
Analogue Inputs | 3 x Aux,1 x Phono (MM), 1 x Power Amplifier |
Digital Inputs | 2 x SPDIF (Coax), 2 x (Optical), 1 x HDMI ARC, 1 x PC USB (USB B), 1 x Bluetooth (aptX/aptX LL) |
Audio Outputs | 1 x PRE Amplifier, 1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger |
DAC | |
D to A Converter | ES9038Q2M |
Total Harmonic Distortion (THD) | <0.0005% (1kHz @ 0dBFS) |
Max. Sampling Frequency | Optical/Coax: 192kHz; PC USB PCM768kHz, DSD512 |
General | |
Included Accessories | Remote Control |
Dimensions ( H x W x D ) | 78 x 444 x 340mm |
Weight | 8.4kg |
Colour Choice | Black or Silver |
