THE PINNACLE OF PERFORMANCE

AUDIOLAB 9000P
DUAL MONO. TWICE THE IMPACT.


DESIGNED TO MEET YOUR DEMANDS
MADE TO MEASURE
CURRENTLY DOMINATING


START STRONG. FINISH STRONGER.
GET CONNECTED


prefer the in-store experience?
Audio Visual Revolution Pty Ltd is supported by an incredible network of Australian audio specialists retailing our product. For all in-store demonstrations or to support your local retailer, click below.

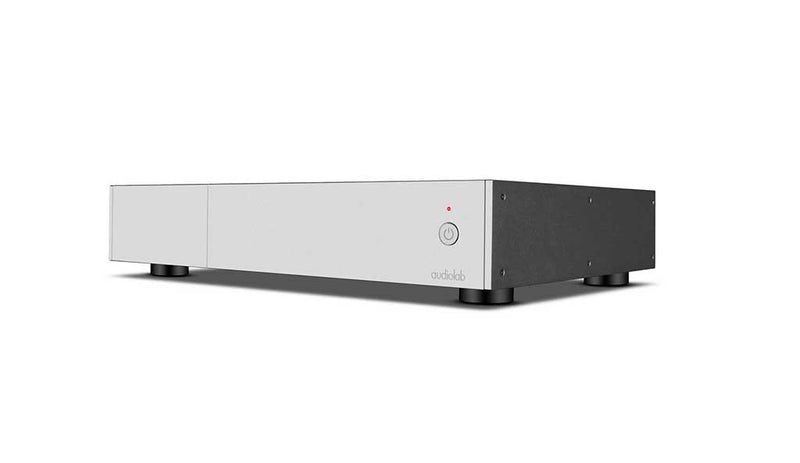

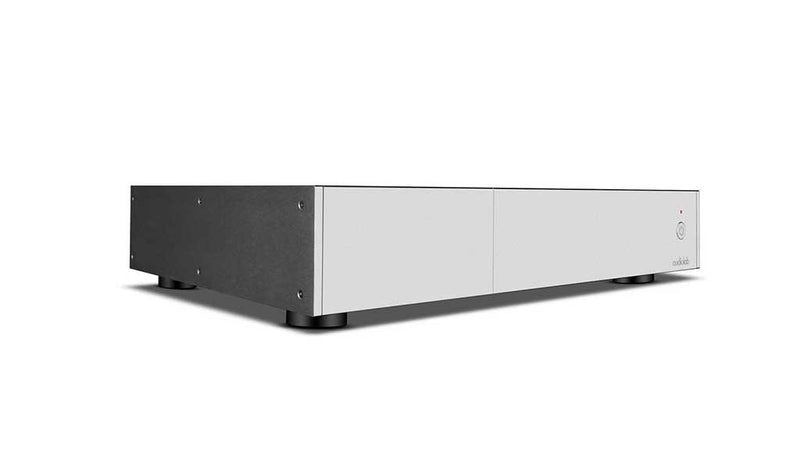

Audiolab 9000P Power Amplifier
Technical specifications
Amplifier Type | Dual-mono Class AB with Complimentary Feedback design |
Gain | 29dB (RCA) / 23dB (XLR) |
Power Output – Stereo | 2 x 100W (8 ohms, THD<1%); 2 x 160W (4 ohms, THD<1%) |
Power Output – bridged (2 x 9000P) | 2 x 300W (8 ohms, THD<1%) 2 x 380W (4 ohhms, THD<1%) |
Frequency Response | 20Hz - 20kHz (+/-0.3dB) |
Total Harmonic Distortion (THD) | <0.002% (1kHz) |
Input Sensitivity | 1Vrms (RCA), 2Vrms (XLR) |
Signal-to-Noise Ratio (S/N) | > 112dB (A-weighted) |
Maximum Current Delivery | 15A |
Inputs | 1 x Stereo XLR; 1 x Stereo RCA; 1 x 12V trigger |
Outputs | 1 x Stereo Speaker Binding Posts |
Dimension (WxHxD) | 444 x 90 x 328mm |
Weight | 10.6kg |
