NEED A WAY TO ESCAPE?

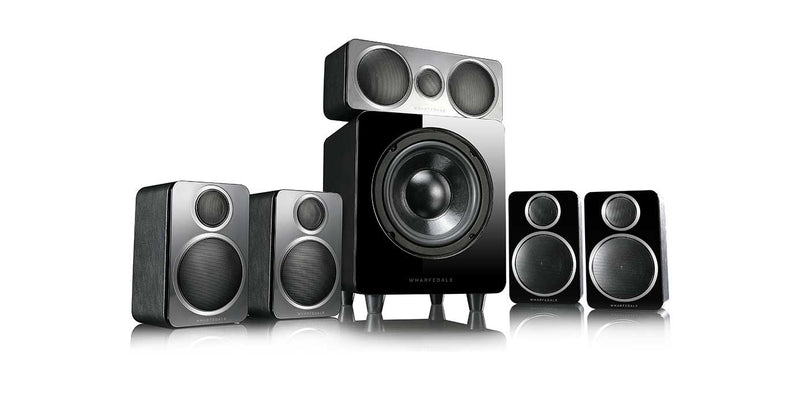

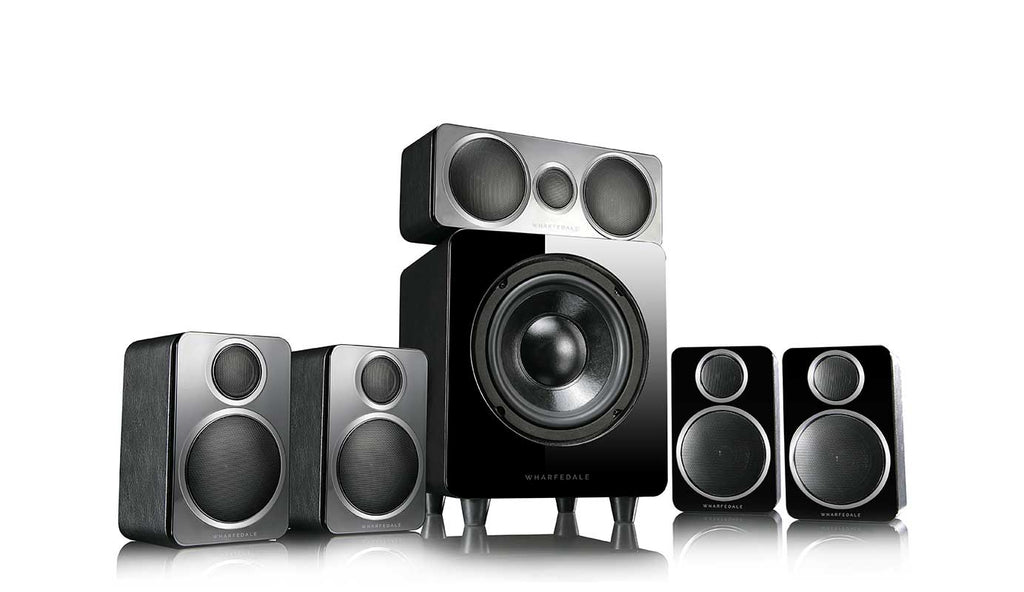

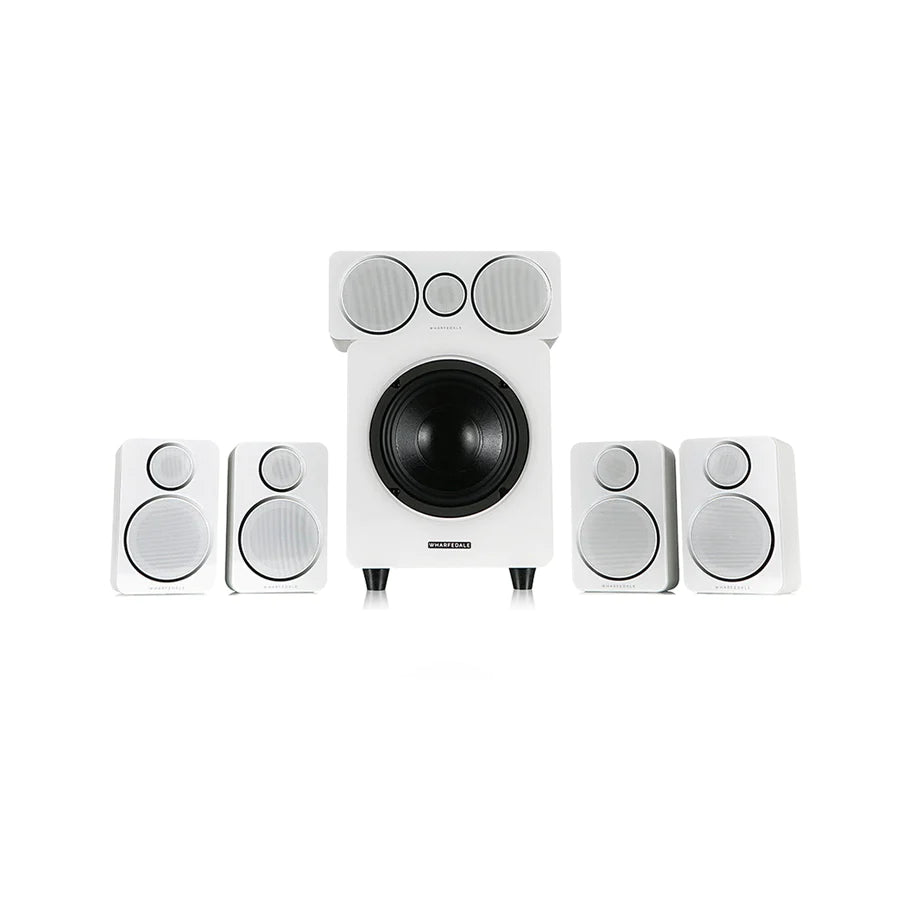

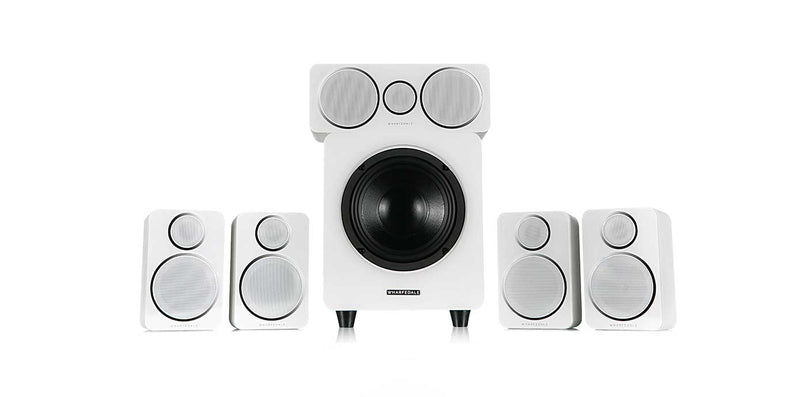

DX-2 HOME CINEMA PACK
CLEVER DESIGN UNBELIEVABLE VALUE


LIGHTS CAMERA ACTION
REMOVING HARD FROM HOME THEATRE

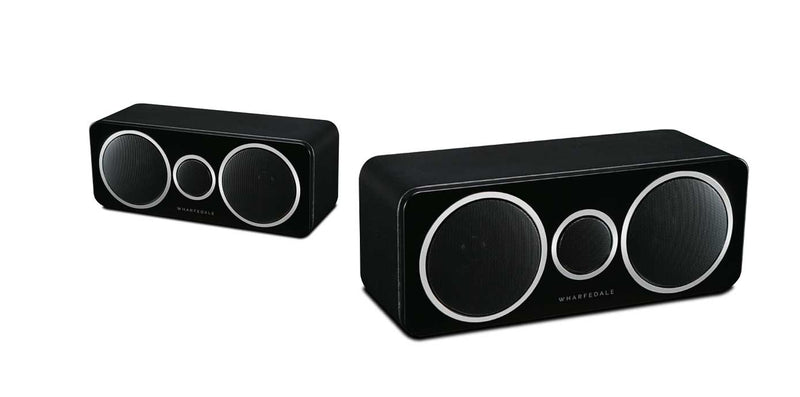

CENTRE OF THE ACTION

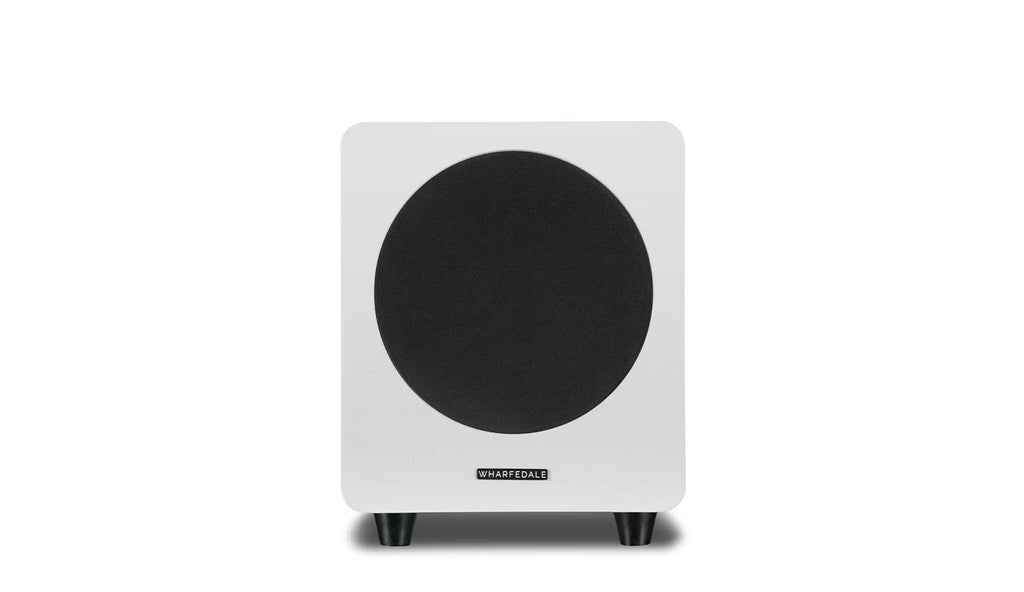

LOW END RELOADED

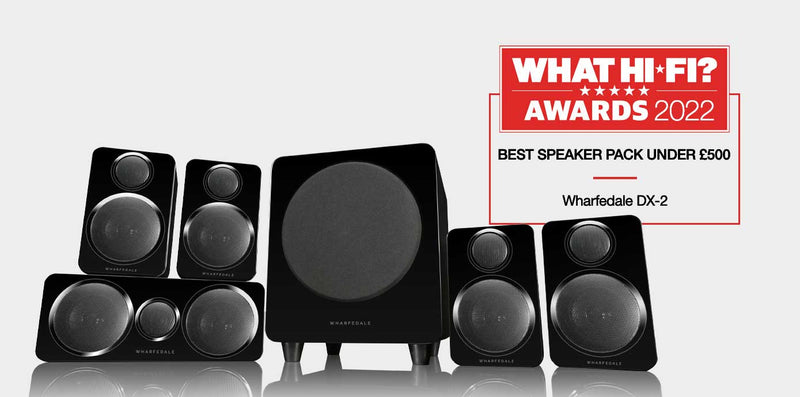

AWARD-WINNING QUALITY
DESIGNED TO SUIT YOUR SPACE


prefer the in-store experience?
Audio Visual Revolution Pty Ltd is supported by an incredible network of Australian audio specialists retailing our product. For all in-store demonstrations or to support your local retailer, click below.
DX-2 HCP
Technical specifications

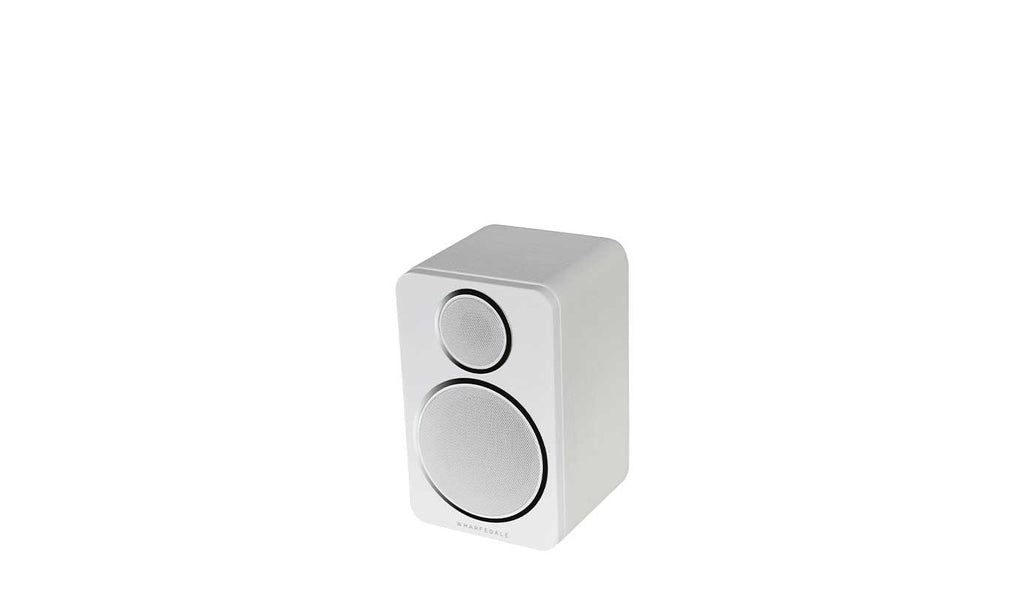

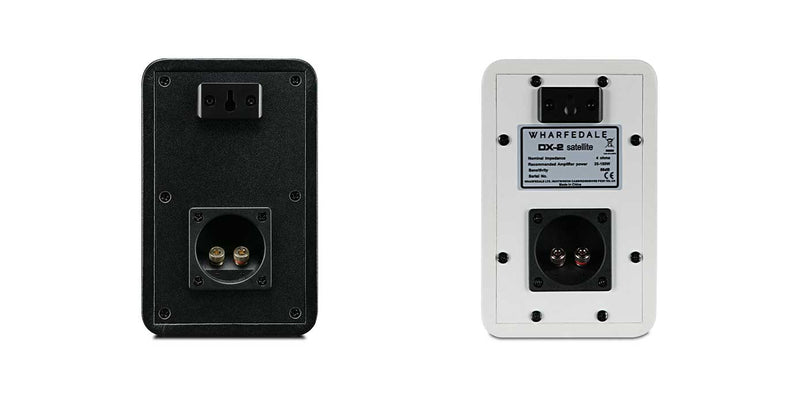

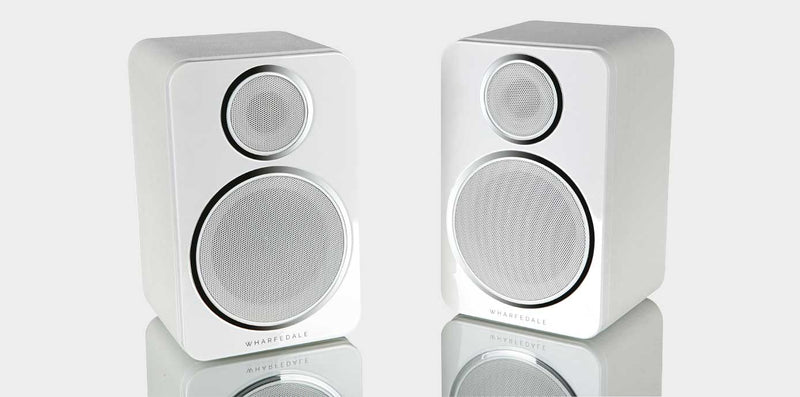

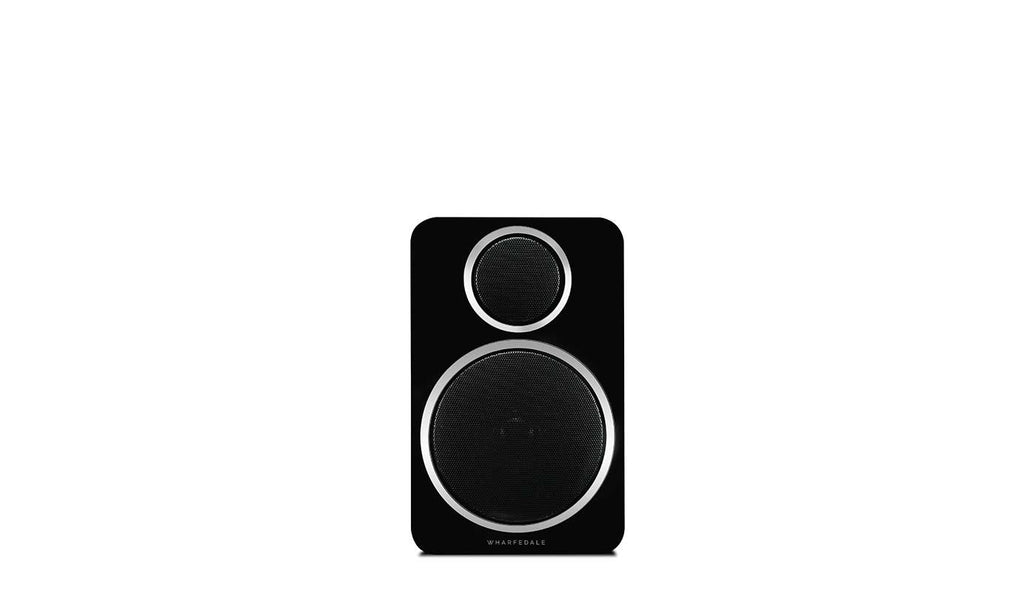

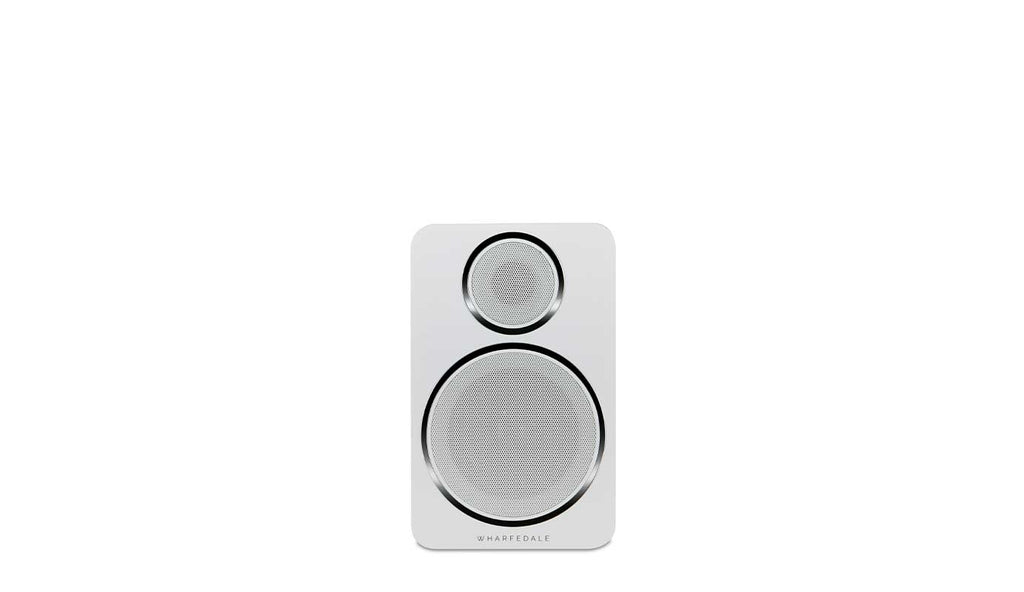

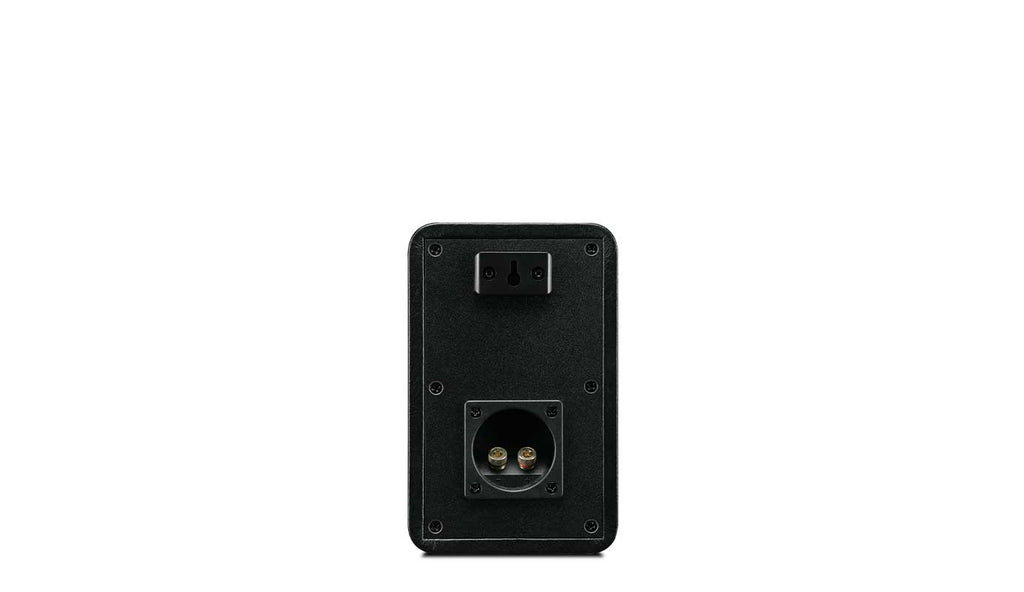

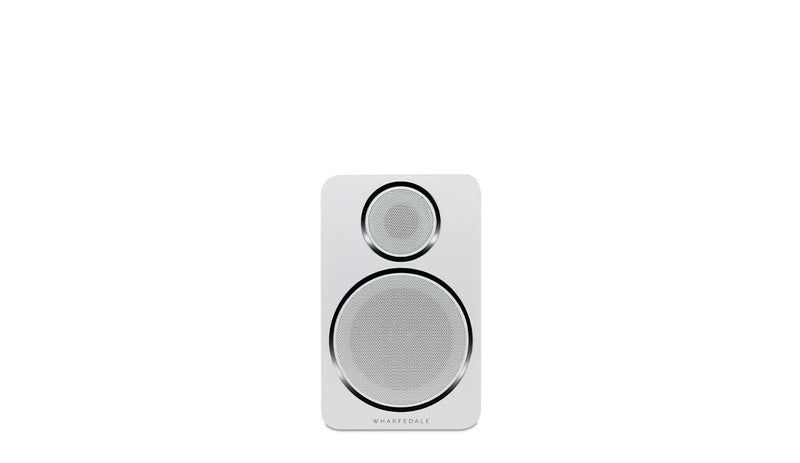

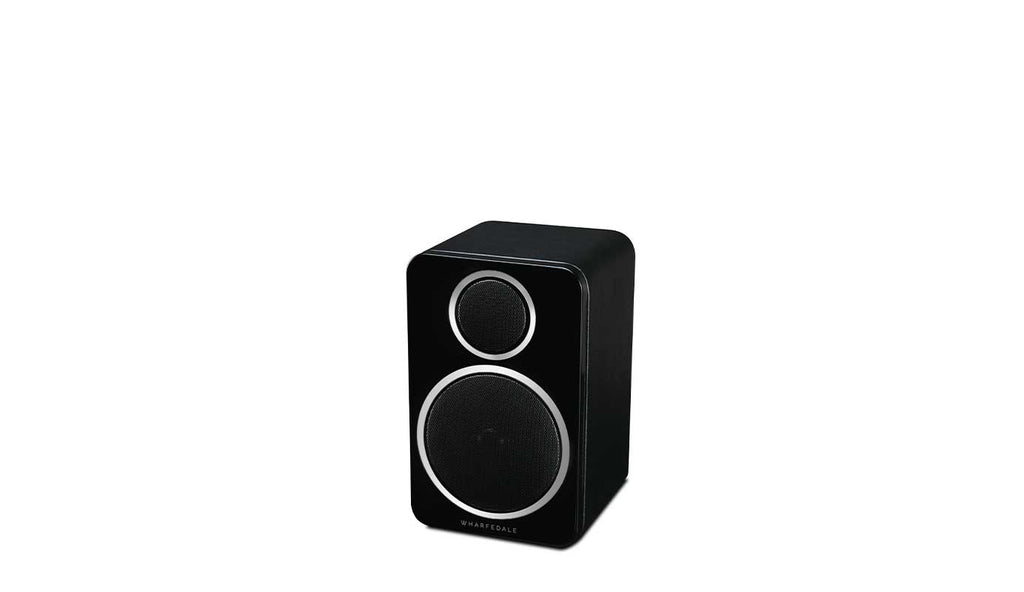

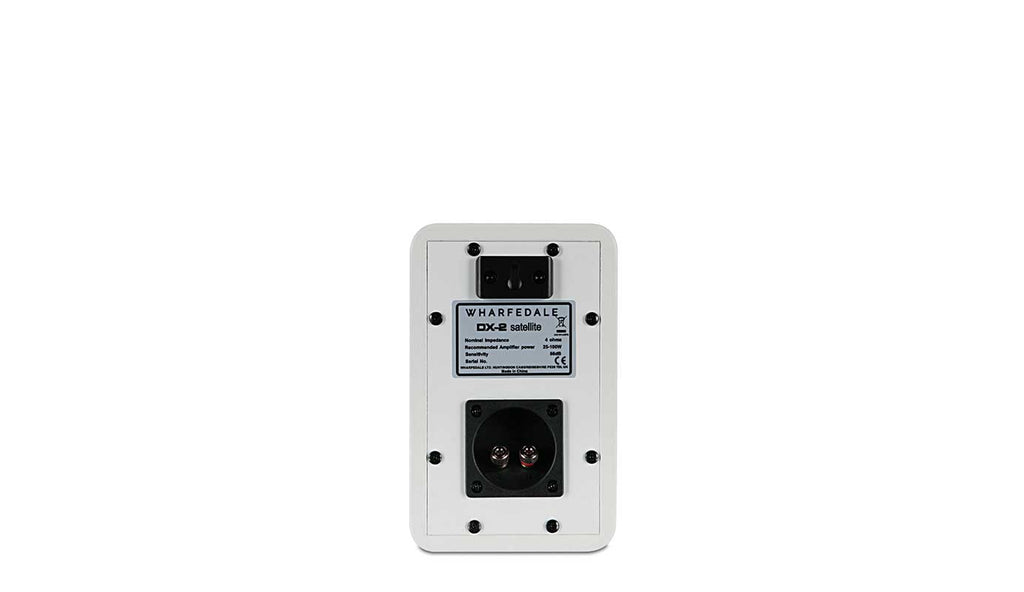

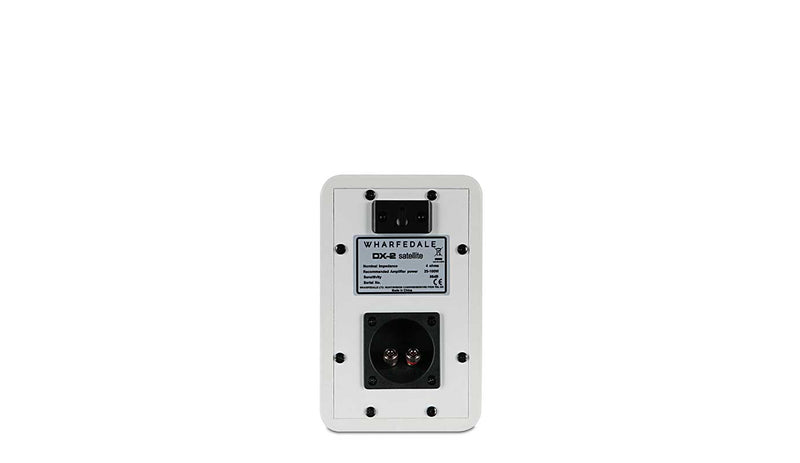

SATELLITE SPEAKERS | |
Bass driver | 3"(75mm) woven polypropylene |
Treble driver | 3/4" (19mm) silk dome |
Sensitivity (2.38v @1m) | 84dB |
Recommended Amplifier Power | 20-60W |
Frequency Response (+/-3dB) | 120Hz - 20kHz |
Bass Extension (-6dB) | 100Hz |
Dimensions ( H x W x D ) | 190 x 120 x 122mm |
Net weight | 2kg/pcs |
- | |

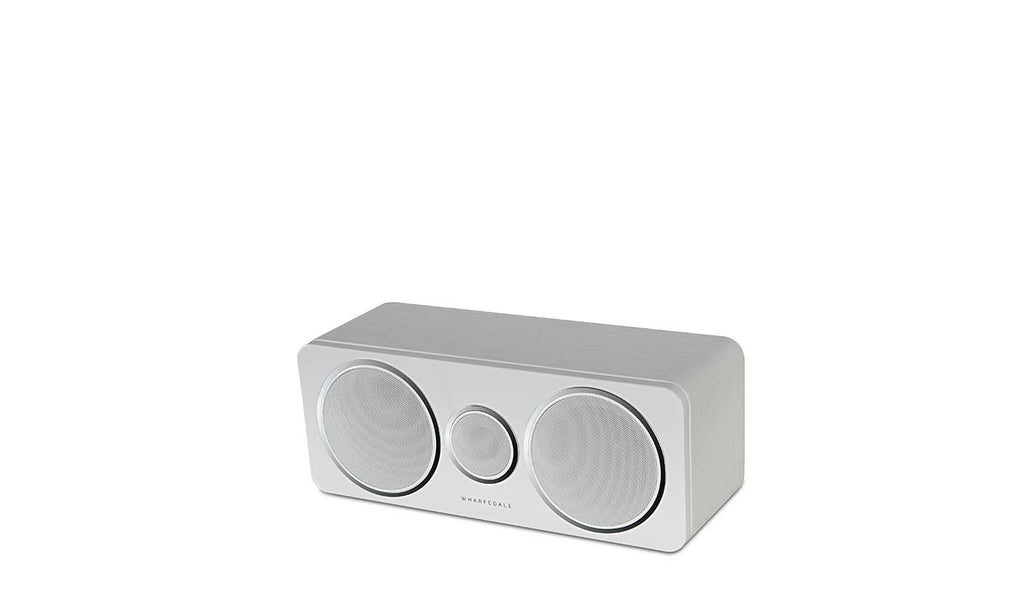

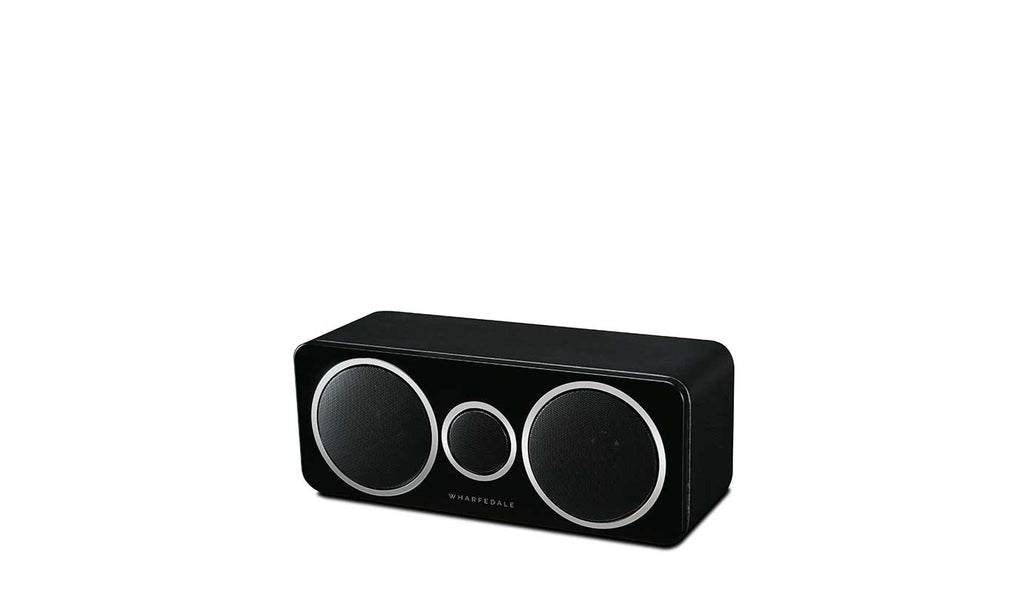

CENTRE SPEAKER | |
Bass Driver | 3" (75mm) woven polypropylene |
Midrange Treble Driver | 3/4" (19mm) silk dome |
Sensitivity (2.83v @1m) | 86dB |
Recommended Amplifier Power | 20-100W |
Frequency Response (+/-3dB) | 80Hz - 20kHz |
Bass Extension (-6dB) | 70Hz |
Dimensions (H x W x D ) | 120 x 310 x 122mm |
Net Weight | 2.7kg |
- | |

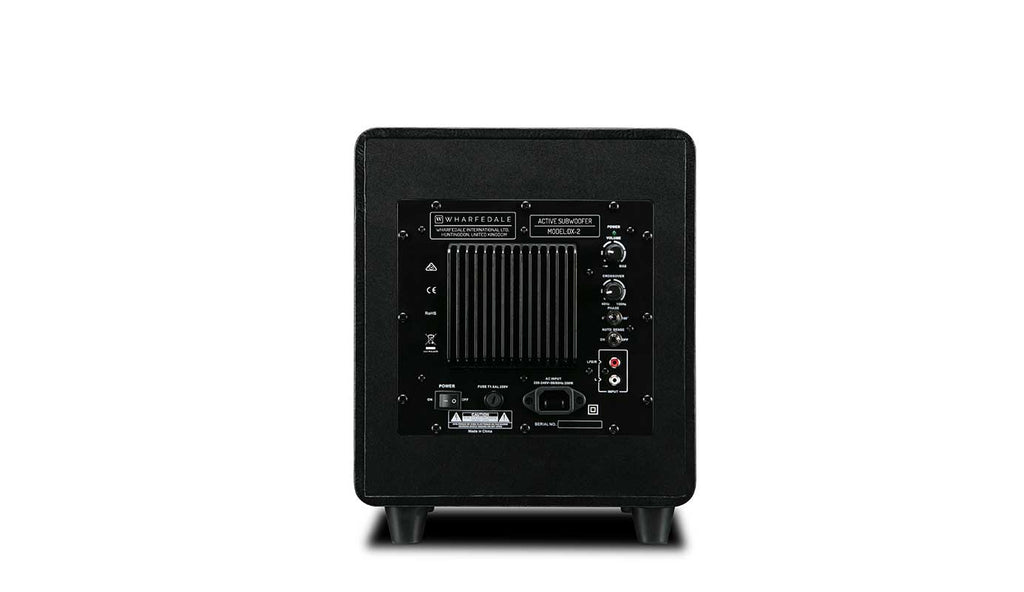

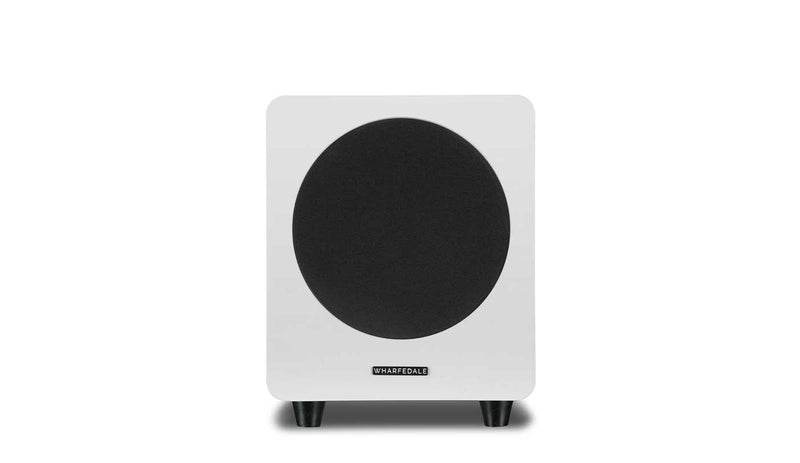

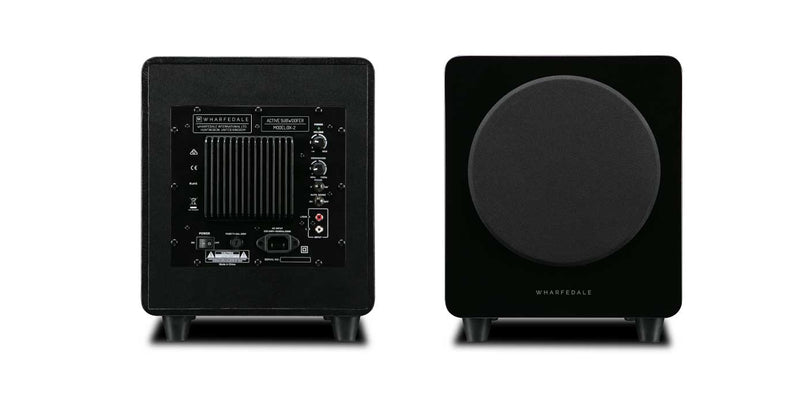

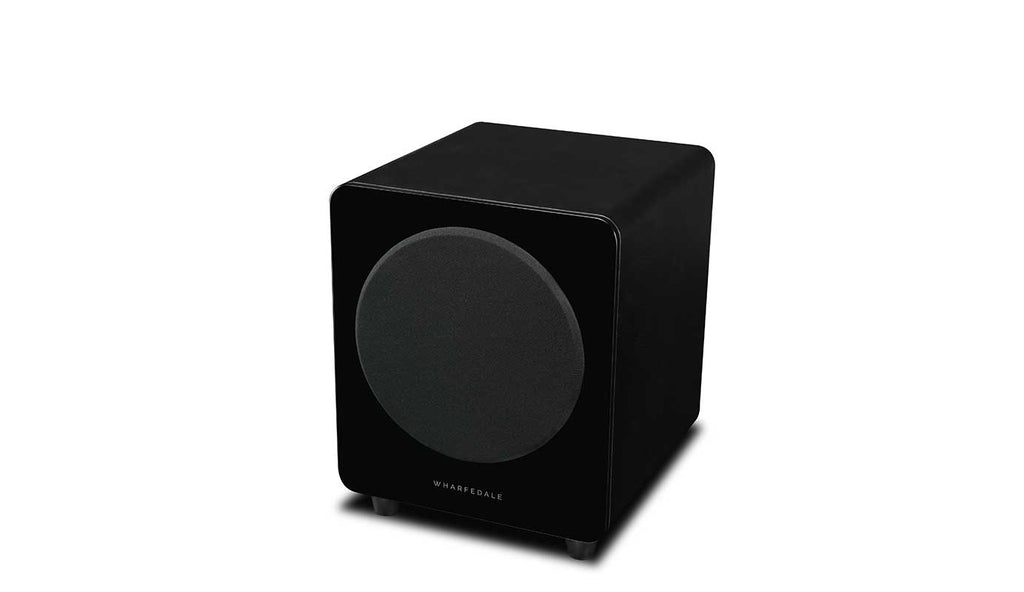

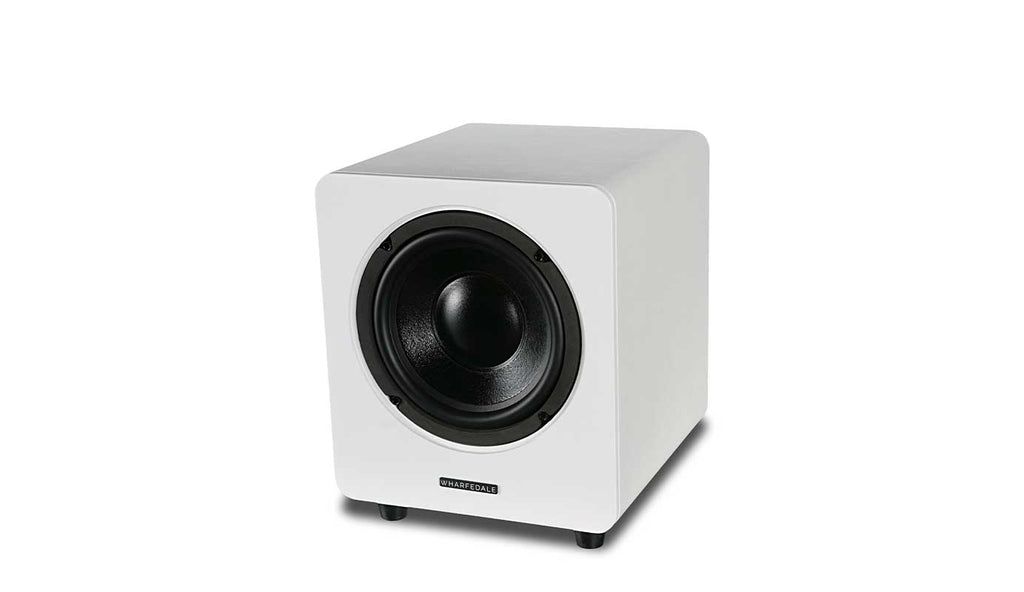

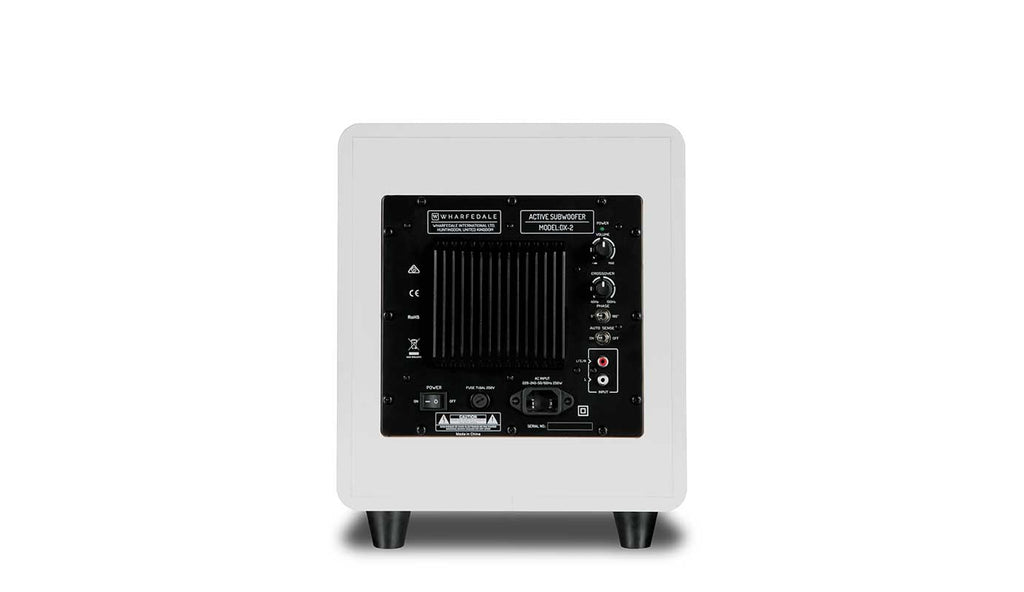

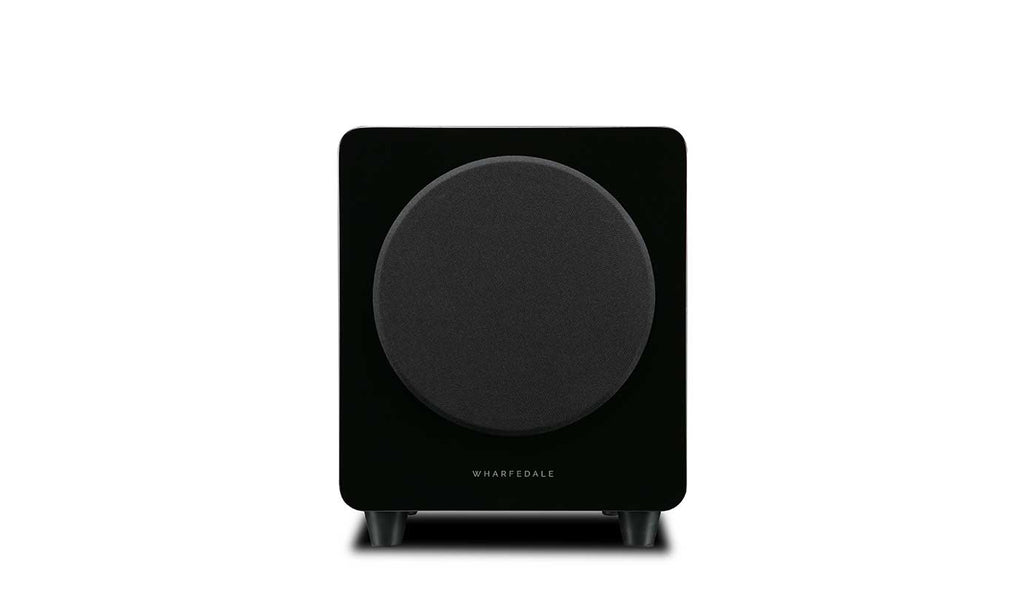

SUBWOOFER | |
Bass Driver | 8" (200mm) long-throw cone |
Frequency Response | 40 - 120Hz +/- 3dB |
Amplifier Power Output | 70W |
Crossover Range | 40 - 150Hz |
Inputs | Stereo Line In (2 x RCA Phono) |
mono (LFE), line in (RCA Phono) | |
Input Impedance | Line in 10kΩ LFE 5kΩ |
Features | Low pass filter slope adjustment |
Phase inversion | |
Auto on-off | |
Dimensions ( H X W D ) | 328 x 268 x 322mm |
Net Weight | 7.8kg |
