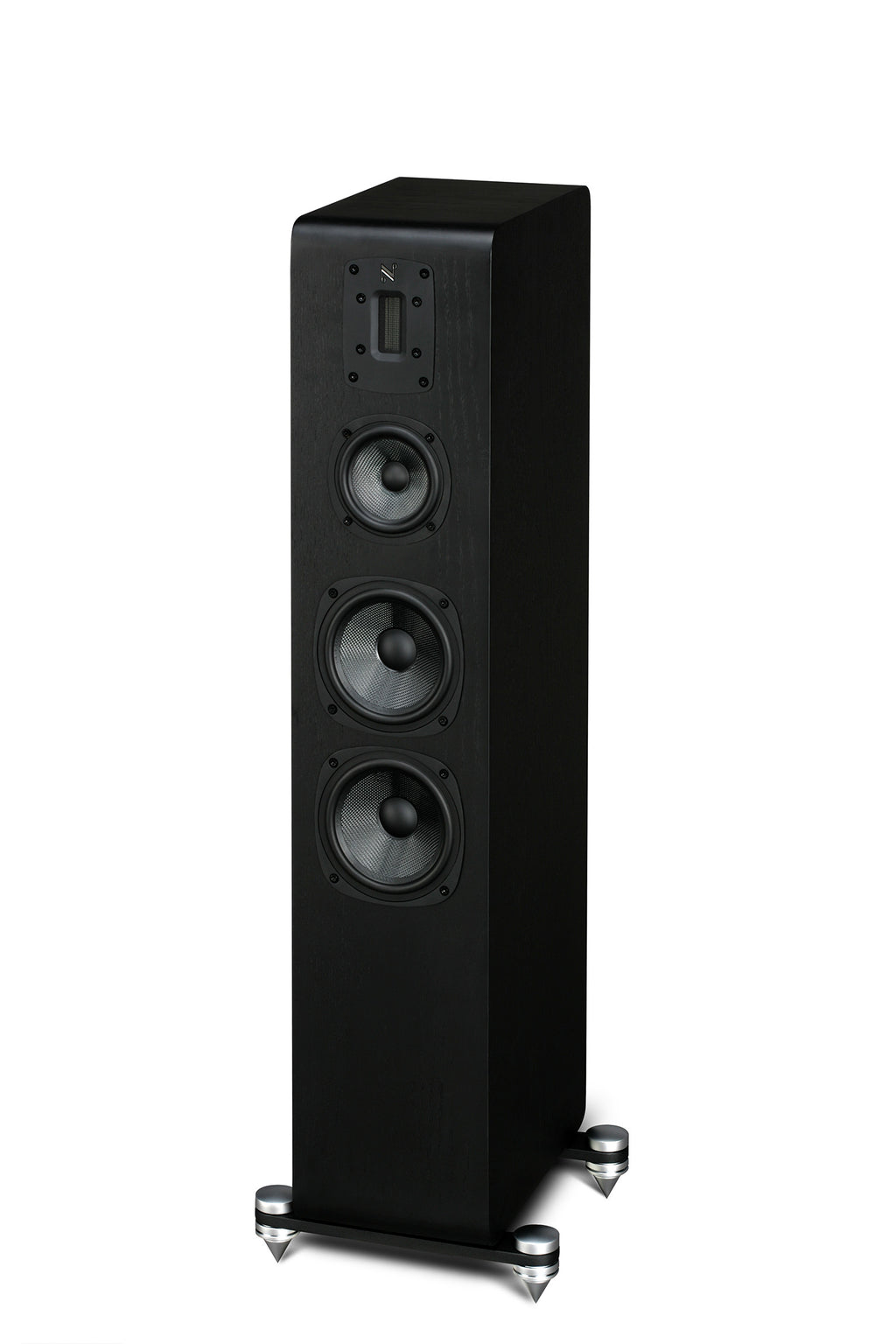

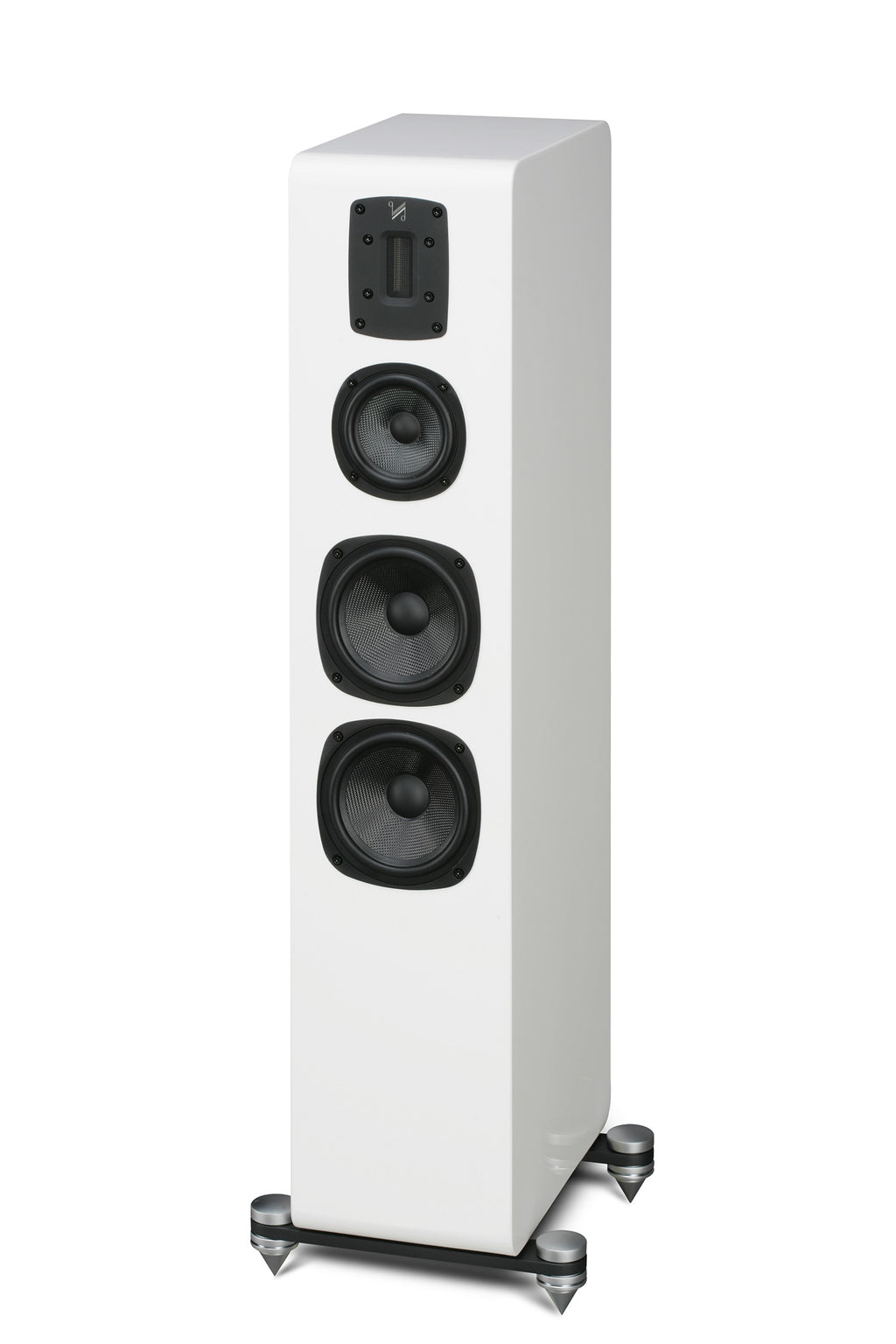

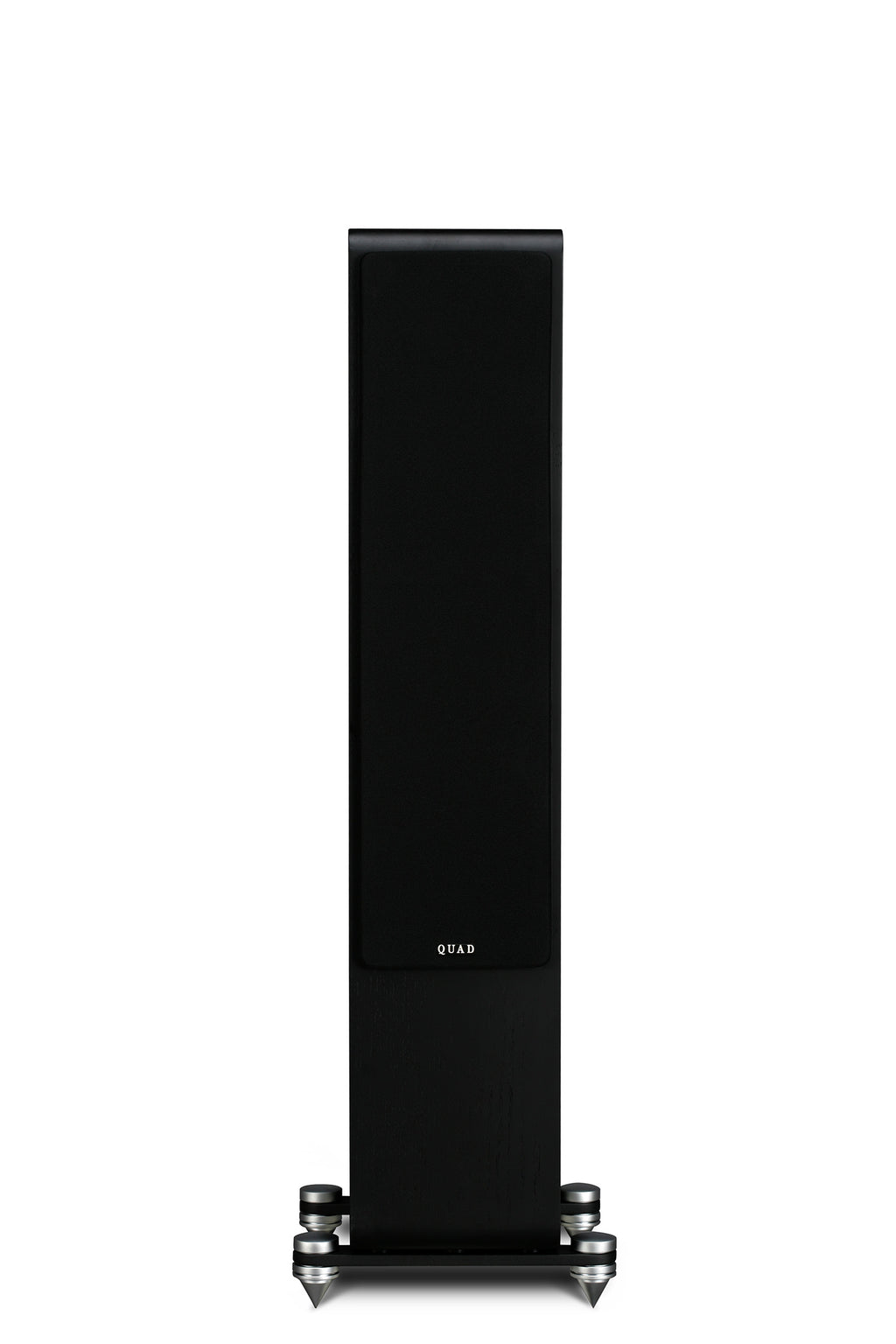

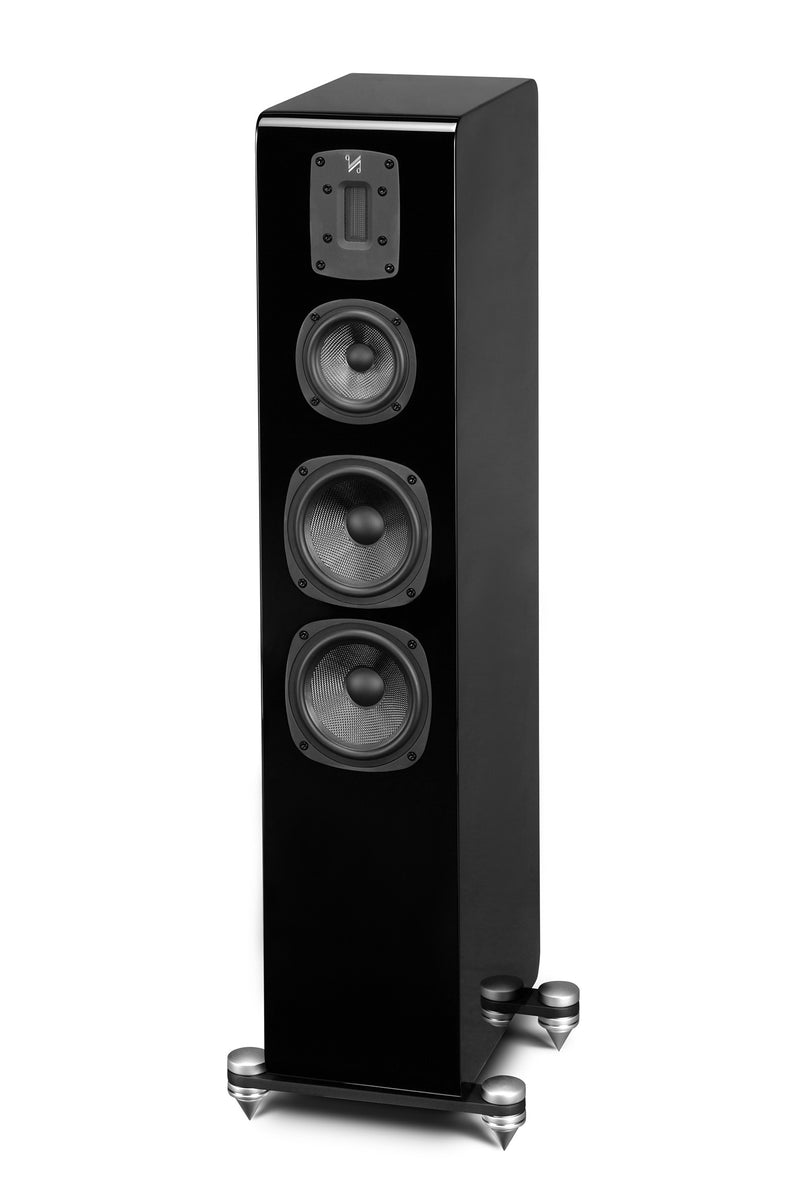

Quad S-4
Technical specifications
Enclosure Type | Sealed enclosure with auxiliary bass radiators (ABR) |
Bass Driver |

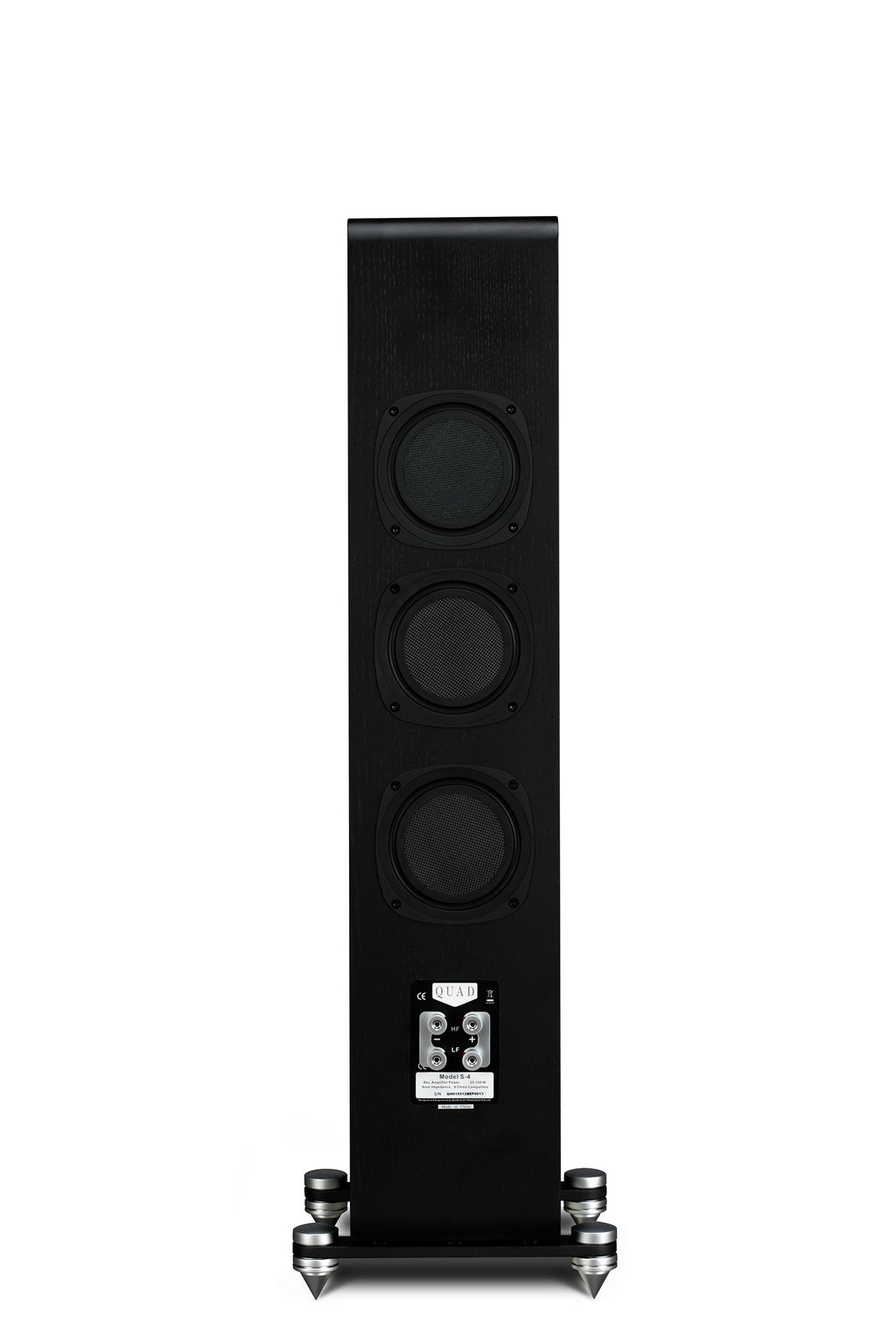

DUAL 5 inch woven Carbon Fibre cone 3 x 5 inch ABR (rear-firing) |
Midrange Driver | 4 inch woven Carbon Fibre cone |
Tweeter | 0.5 x 2 inch Ribbon |
Frequency Response (+/-3dB) | 44Hz - 23kHz |
Sensitivity (2.83V@1m) | 88dB |
Recommended Amplifier Power | 25-100W |
Nominal Impedance | 6 Ohms |
Dimensions (H x W x D) in mm | 925 × 180 × 300 (mm) |
Weight | 16kg each |
Available Colours |
Piano Black, Piano White Black Oak Veneer, Sapele Mahongany Veneer |
