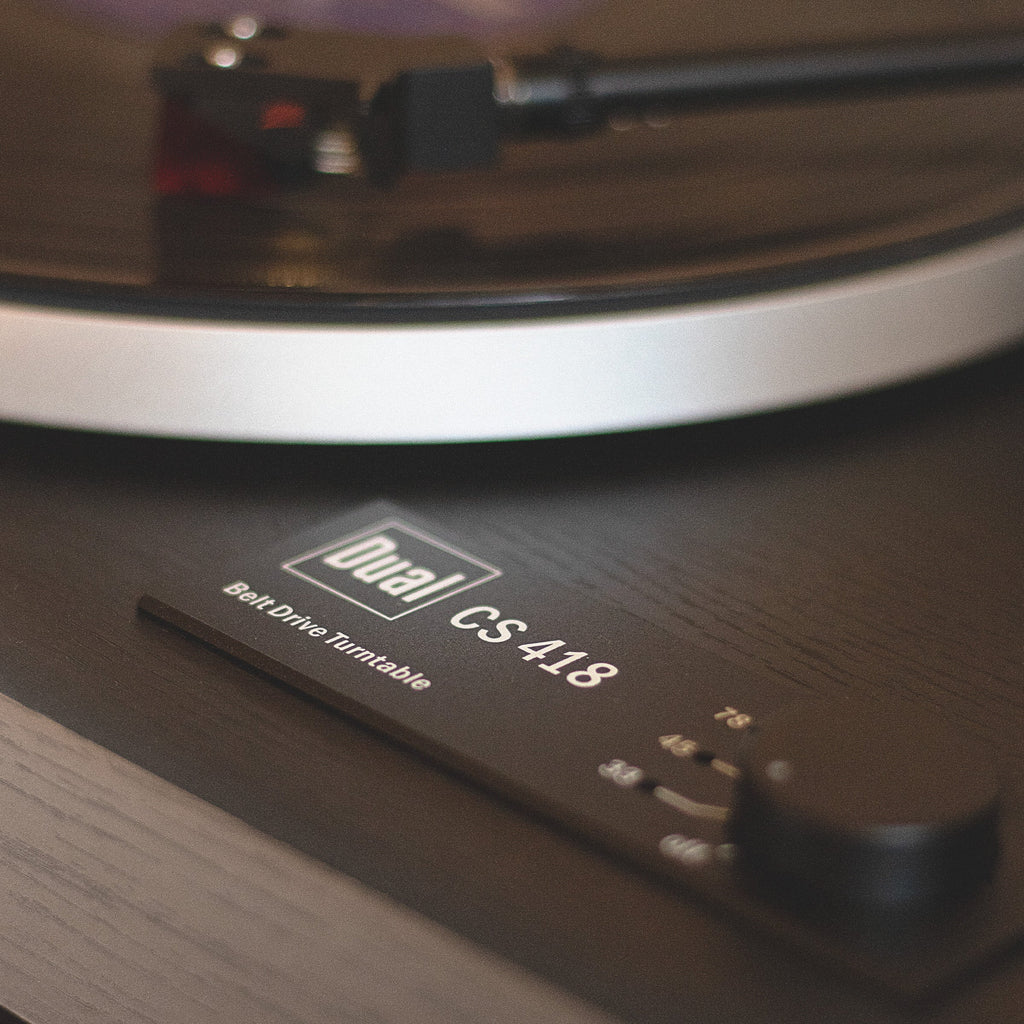

CS 418 – Born Analogue
Worthy of Your Worship


Like They Used to Make Them
Built to Last
Audiophile Detail... But also Boogies!

Feels like Music
The Perfect Match


prefer the in-store experience?
Audio Visual Revolution Pty Ltd is supported by an incredible network of Australian audio specialists retailing our product. For all in-store demonstrations or to support your local retailer, click below.

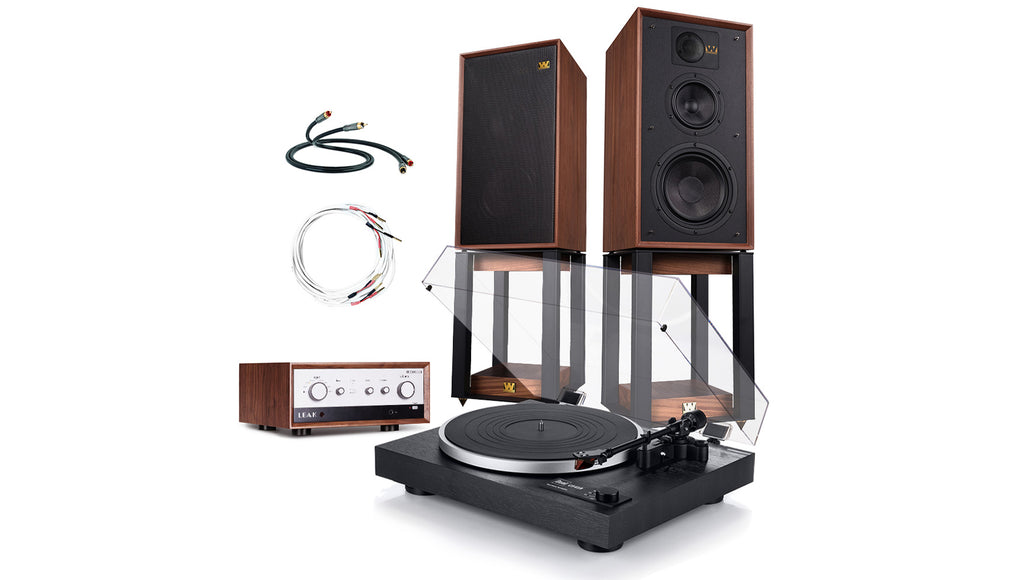

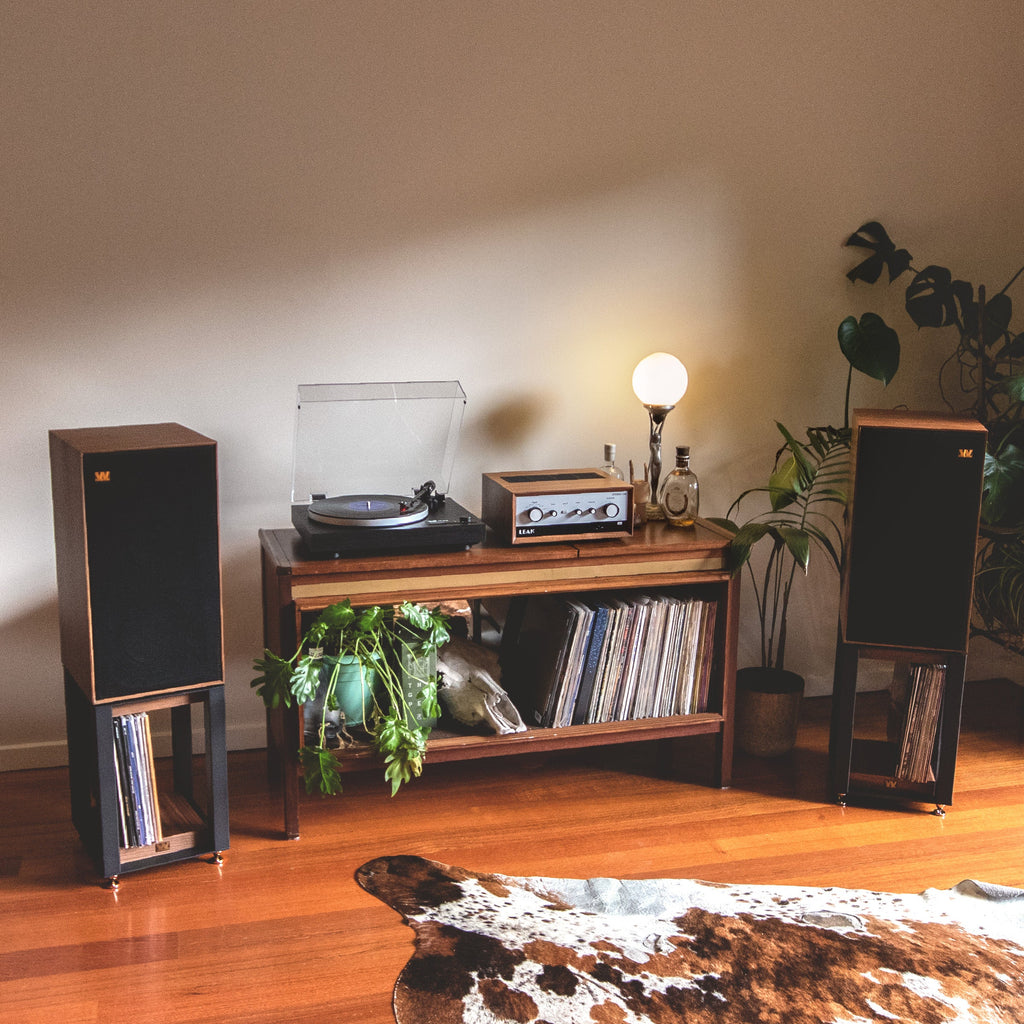

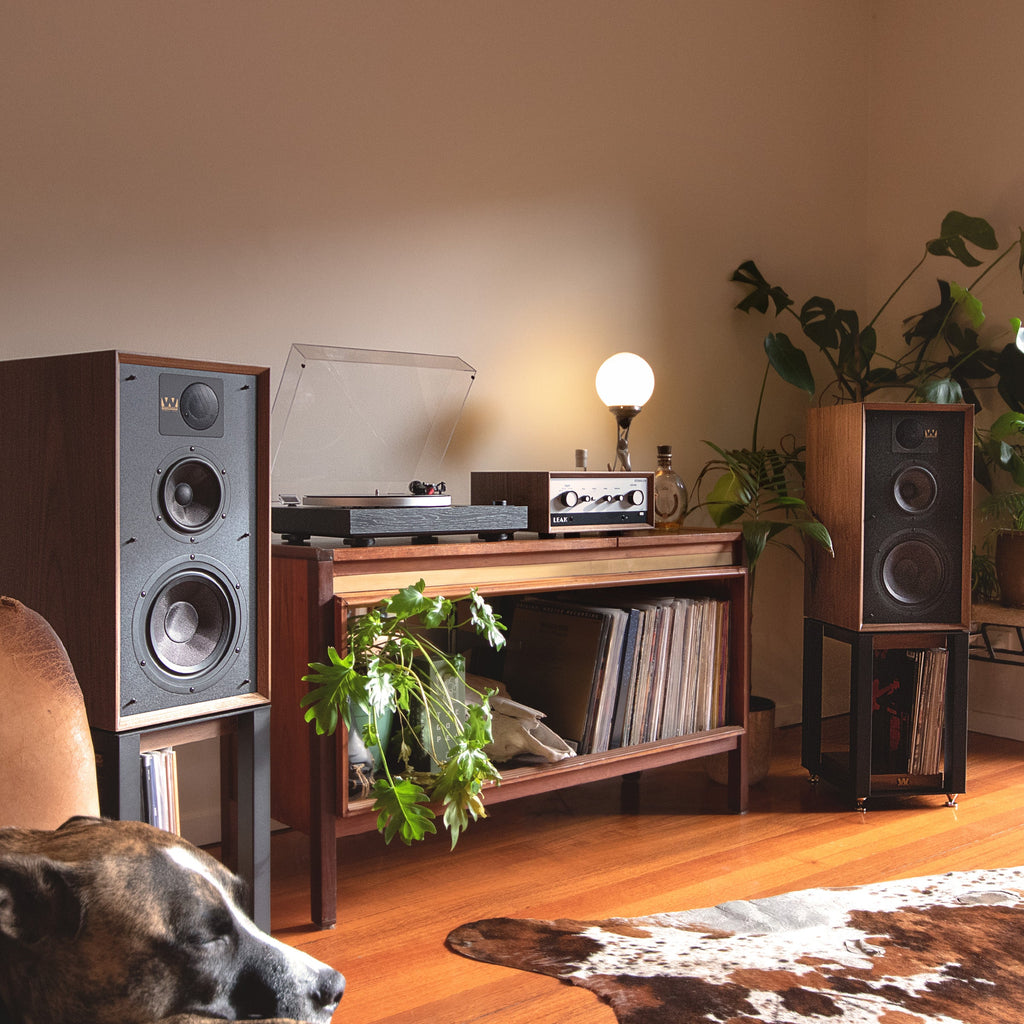

The Tambourine Man Hi-Fi System
Technical specifications
The Record Player

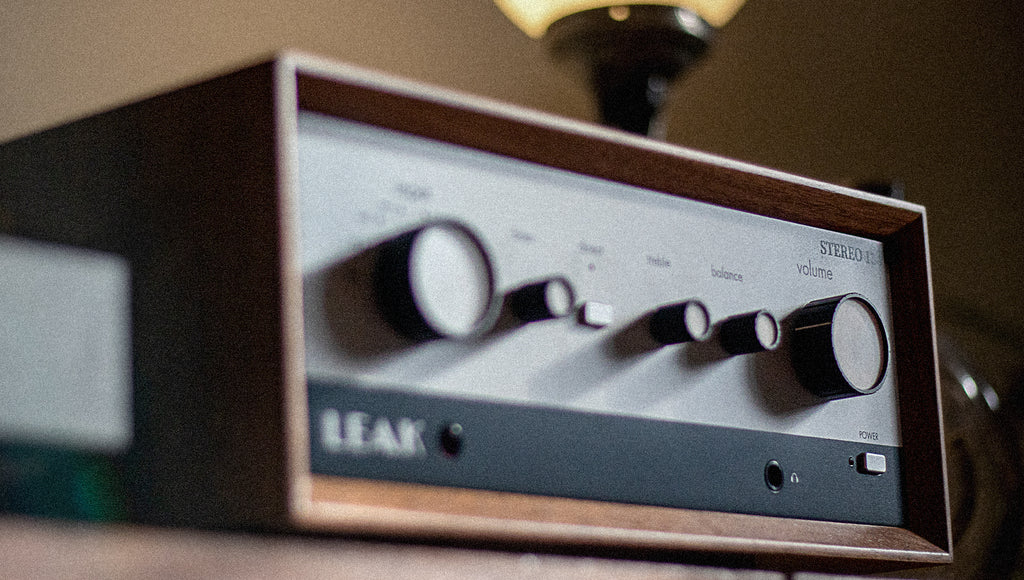

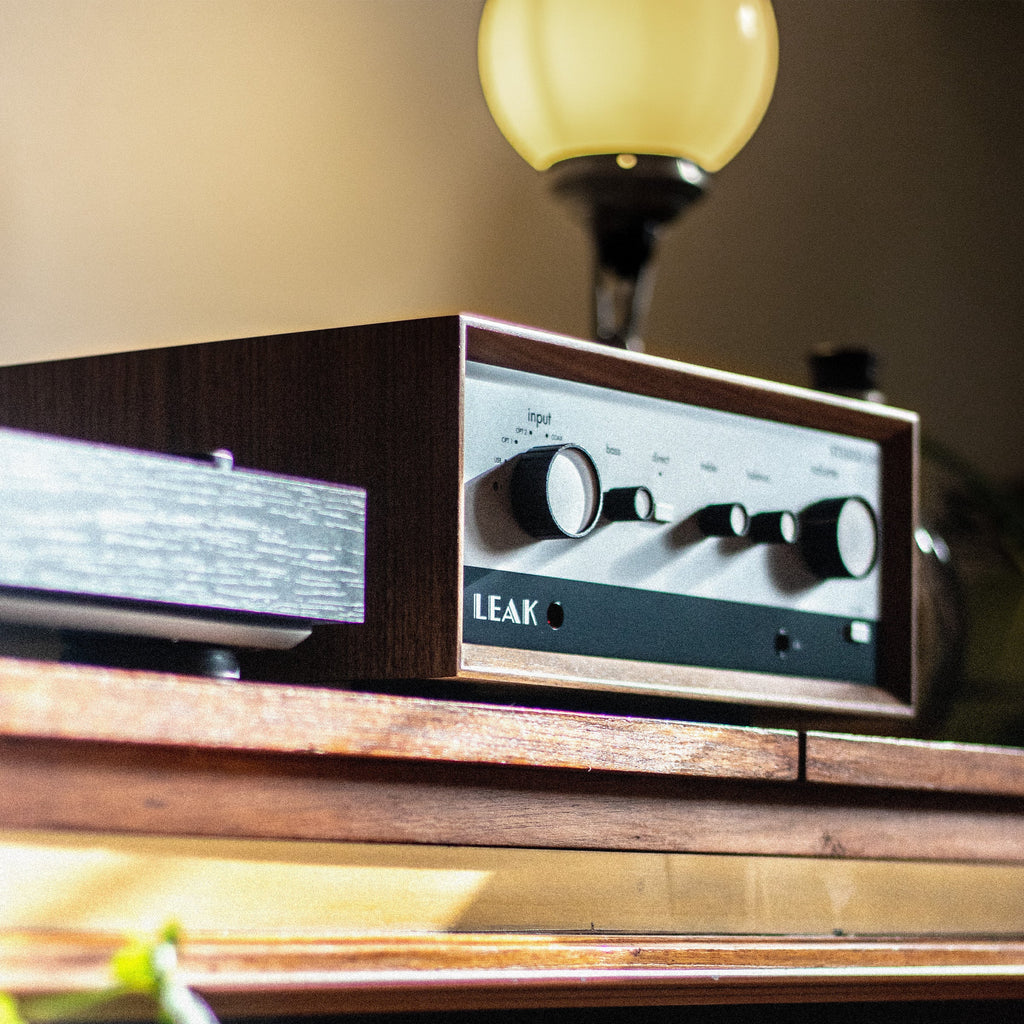

The Amplifier

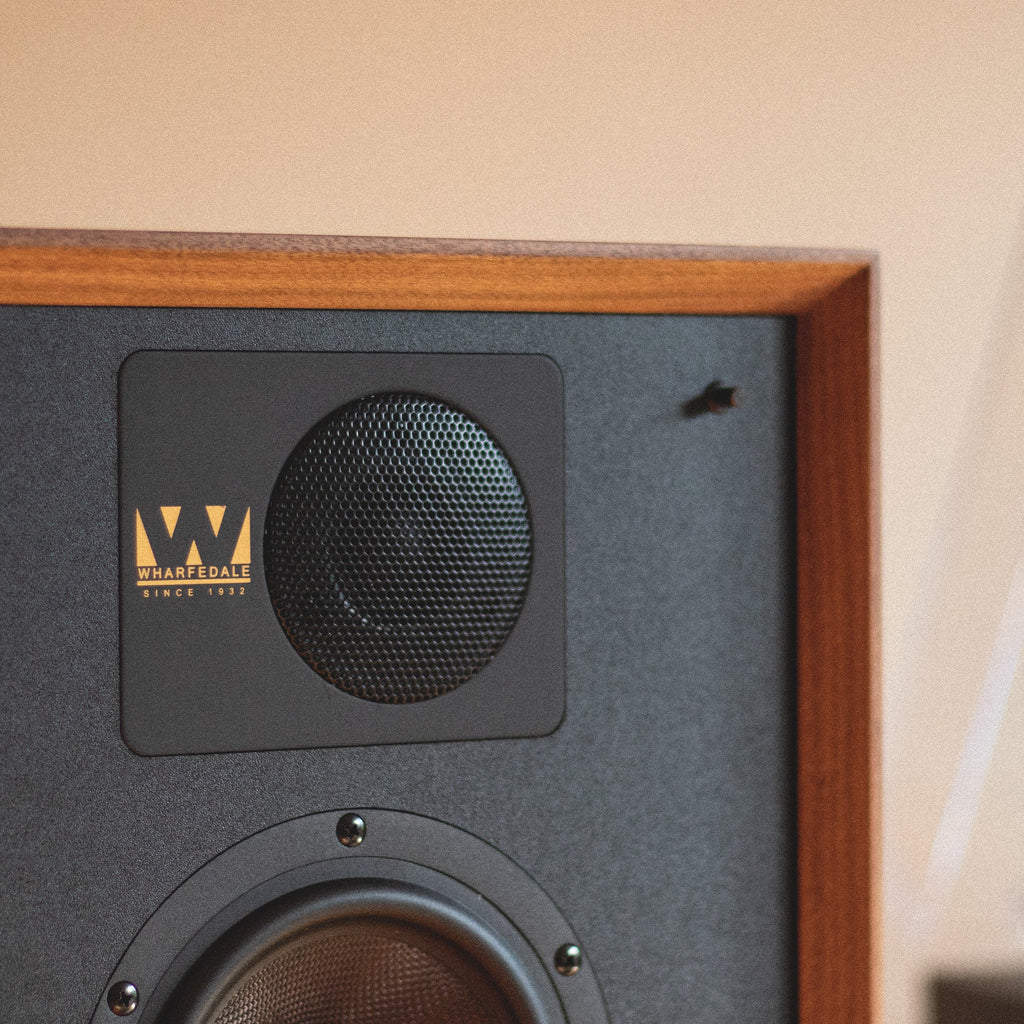

The Speakers
Motor: | |
Drive: | Belt Drive |
Speed: | 33/45/78 |
Wow & Flutter: | < ±0,1 % (DIN WTD) |

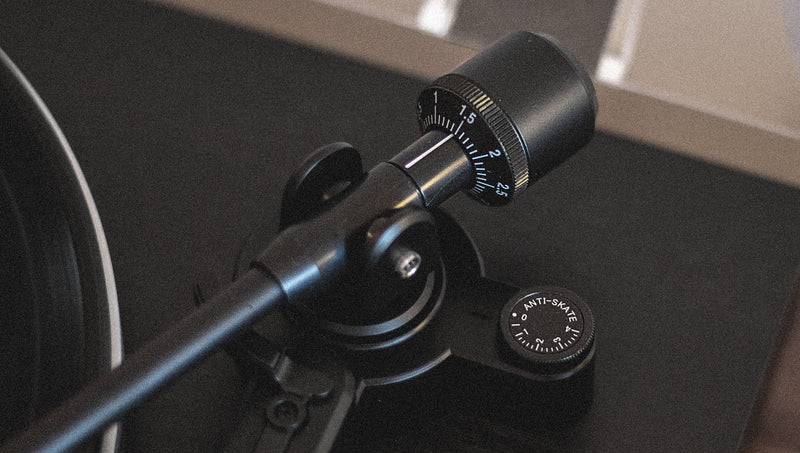

Tonearm: | |
Auto-Start/Stop Function: | Manual Operation |
Bearing: | Ball-bearing |
Effective Length: | 221.5mm |
Type: | Statically Balanced |
Cartridge Weight Range: | 5g to 9g |

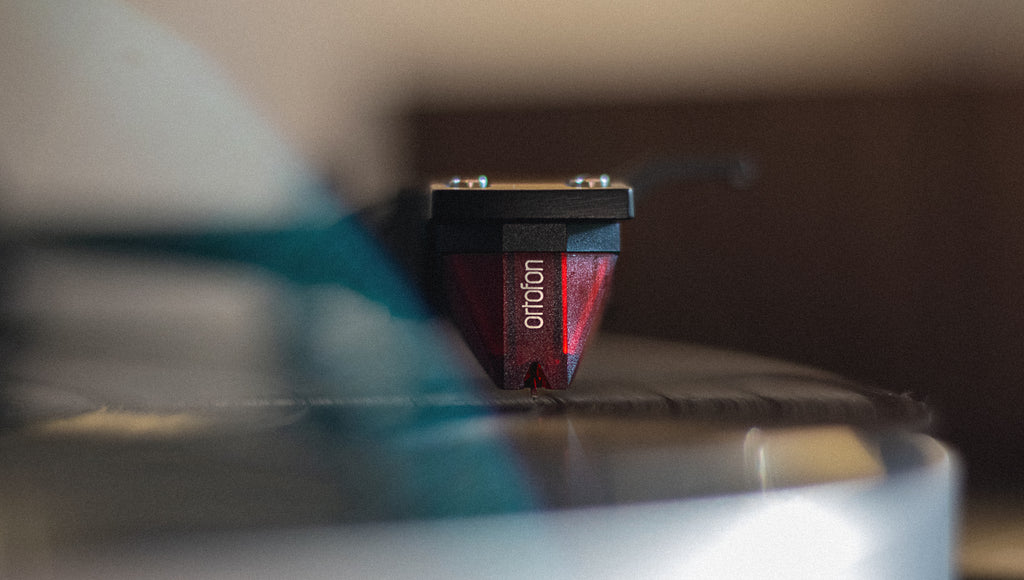

Factory-Fitted Cartridge: | Ortofon 2M Red |
Platter: | |
Material: | Aluminium die-cast |
Mat: | Rubber 2.5mm |
Diameter: | 305mm |
Weight: | 850g |
Plinth: | |
Material: | MDF, folded |
Surface Finish: |
Black wood |
Connections: |
RCA socket |
Dimensions (HxWxD): |
435 x 367 x 145mm (Dustcover closed) |
Weight: | 5.8kg |
Power plug: | External Power Supply |
D/A Converter | ESS Sabre32 Reference ES9038Q2M |
Input Sampling Rates | Optical, Coaxial: 192kHz; PC USB: PCM 768kHz; DSD512 |
Rated Output Power | 2 x 75W (8ohm)/2x115W (4ohm) |
Total Harmonic Distortion | < 0.003% (30W, 8ohm) |
Frequency Response | 20Hz-20kHz (+/-0.3dB) |
Input Sensitivity | 550mV (Line, Volume=Max); 4.8mV (phono MM, Volume=Max) |
Input Impedance | 10K (line) ; 47Kohm //100pF (phono MM) |
Signal to Noise Ratio (S/N) | ≥109dB (A-weighted) |
Pre Output Total Harmonic Distortion (THD) | < 0.001% |
Pre Output Signal to Noise (S/N) | >110dB (A-weighted); 75db (Phono MM, A-weighted) |
Bluetooth Codec | 5.0 (aptX / aptX LL) streaming |
USB Input | 1 x USB (B-type) |
Digital Audio Inputs | 1 x HDMI ARC, 1 x Coax, 1 x Optical TOSlink ,1 x PC USB |
Outputs | 1 x PRE Amplifier, 1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger |
Analog Inputs | 2 x RCA (AUX1, AUX2) ,1 x RCA (phono MM) |
Power Requirement | 220-240V ~ 50/60Hz 100-120V ~ 50/60Hz |
Dimensions W x H x D (mm) | 328 x 147 x 414 |
Net Weight | 12.7kg |
Gross Weight | 15.2kg |
Finish | Walnut |
General description | 3-way vented-box/standmount |
Bass driver | 8"(200mm) black woven Kevlar® cone |
Midrange driver | 5"(135mm) black woven Kevlar® cone |
Treble driver | 1" (25mm) soft dome |
Recommended amplifier power | 25-200W |
Nominal impedance | 6Ω Compatible |
Sensitivity(2.83V @ 1m) | 90dB |
Frequency response(+/-3dB) | 40Hz ~ 20kHz |
Dimensions - Speaker ( H x W x D ) | 720 x 440 x 460 mm |
Weight - Speaker | 22kg each |
Dimensions - Stand ( H x W x D ) | 550 x 410 x 450 mm |
Weight - Stand | 15kg each |
